Routing template for hinges OTLAV INVISACTA IN300/303

Product code
SABLO-IN300
From €49.60
Reset selection
INVISACTA Hinge routing template   €24.80
Code: SB00030973
Art. Nr.: MUBAS500G002
In Stock. Available: 4 pc.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications

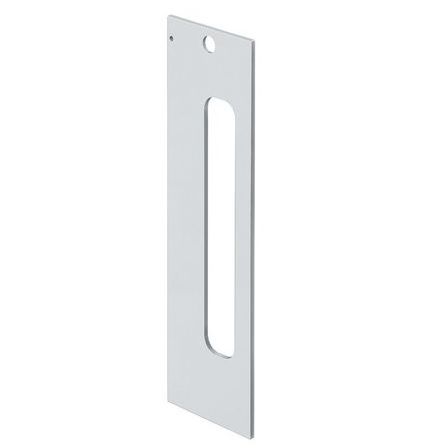

FrÄ“zÅ¡ablona ieliktnis MUINV - IN300/IN303 (2.gab.)   €24.80
Code: SB00030975
Art. Nr.: MUMAS300R004
In Stock. Available: 2 pc.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications

Price as configured €49.60

kit
The selected product is currently out of stock.

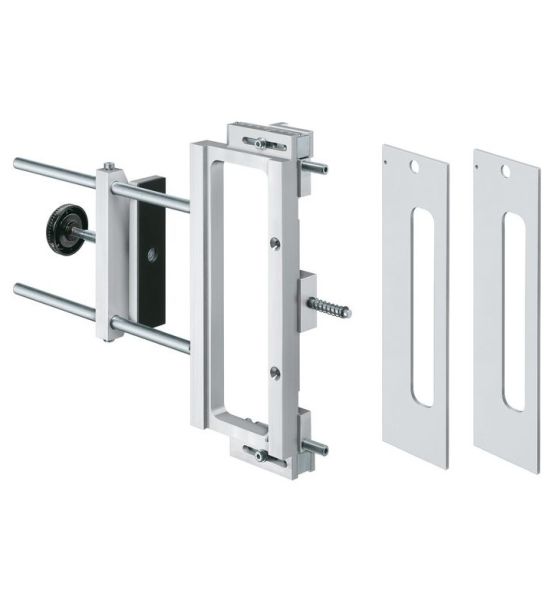

OTLAV INVISACTA IN300/303 hinge template

  • The template set includes a template frame and a fastener.
  • Template inserts must be purchased separately.
  • Universal application for DIN right and left doors.
  • A Ø24 mm milling cutter and a 30 mm copy ring for a router (to be purchased separately) are required for milling.


Installation steps

  1. Attach the template fastener with guides to the template frame
  2. Insert the insert and make approximate settings according to the given rail and angle parameters.
  3. Use the spindle to make precise adjustments.


Components

  • template frame (included in the template set)
  • template inserts (to be supplied separately)



Tools and accessories for milling:

  • milling cutter Ø24 mm
  • end mill copying ring 30 mm





All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. INVISACTA Hinge routing template | UKSELINGIDPLUSS.ee
    INVISACTA Hinge routing template
    Code: SB00030973
    Art. Nr.: MUBAS500G002
    Price:
    From €24.80
    In Stock: 4 pc.
    Visma Quote
  2. Frēzšablona ieliktnis MUINV - IN300/IN303 (2.gab.) | UKSELINGIDPLUSS.ee
    Frēzšablona ieliktnis MUINV - IN300/IN303 (2.gab.)
    Code: SB00030975
    Art. Nr.: MUMAS300R004
    Price:
    From €24.80
    In Stock: 2 pc.
    Visma Quote
Series INVISACTA
