HAWA PORTA 60HMD wall-mounted hardware system for wooden sliding doors

Product code
PORTA-60HMD
Hawa View catalogue of manufacturer

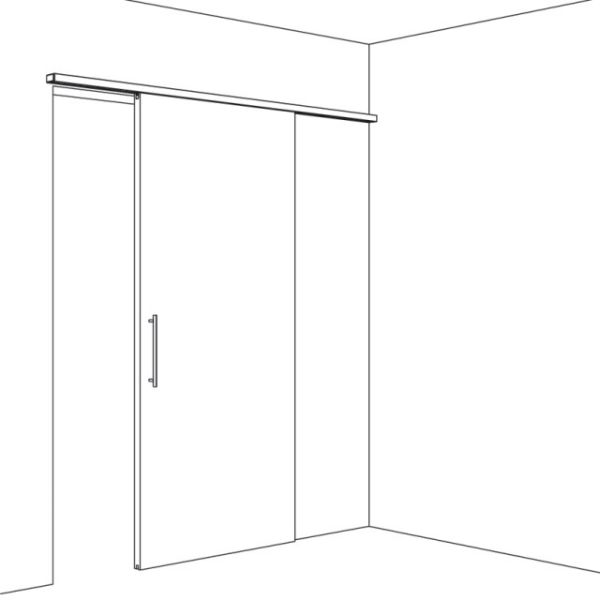

main product photo

From €331.02

Reset selection
HAWA Porta 60/100 top running track, wall-mounted   €137.88
Can be ordered in full packages of pcs.
HAWA Porta 60 HM/HMD hardware set for 1 leaf   €135.72
Can be ordered in full packages of pcs.
HAWA Porta 60/100 HMD track cover cap   €42.02
Can be ordered in full packages of pcs.
HAWA Porta 60/100 HMD set of track end caps   €15.40
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.

Price as configured €331.02

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

HAWA PORTA 60 HMD wall-mounted hardware system for wooden sliding doors

Manufacturer - HAWA (Switzerland)

  • hardware system for wooden sliding doors/partitions weighing up to 60 kg
  • track installation: wall-mounted
  • set includes aluminium cover cap in natural or black tone
  • convenient continuous adjustment
  • minimum door processing and no special tools required
  • ball-bearing rollers ensure high comfort in use
  • elegant profiles, concealed mechanisms
  • flexible solution for premium interior design projects in private and public buildings, such as walk-in-wardrobes, large separating doors between the dining and living area, and any kind of room partitioning
  • max leaf height: 2700 mm
  • max leaf width: 1600 mm
  • max opening width: 1535 mm
  • leaf thickness: 30-45 mm
  • max load: 60 kg
  • adjustable leaf installation height ± 3 mm
  • running track pre-drilled, standard lengths: 2500 mm / 3500 mm
  • track material: aluminium anodised
  • surface material of visible profiles: aluminium natural anodised or aluminium black anodised
  • additional equipment: soft closing mechanism integrated into the track, optimally brakes the door according to its weight and movement speed

Documents and further details

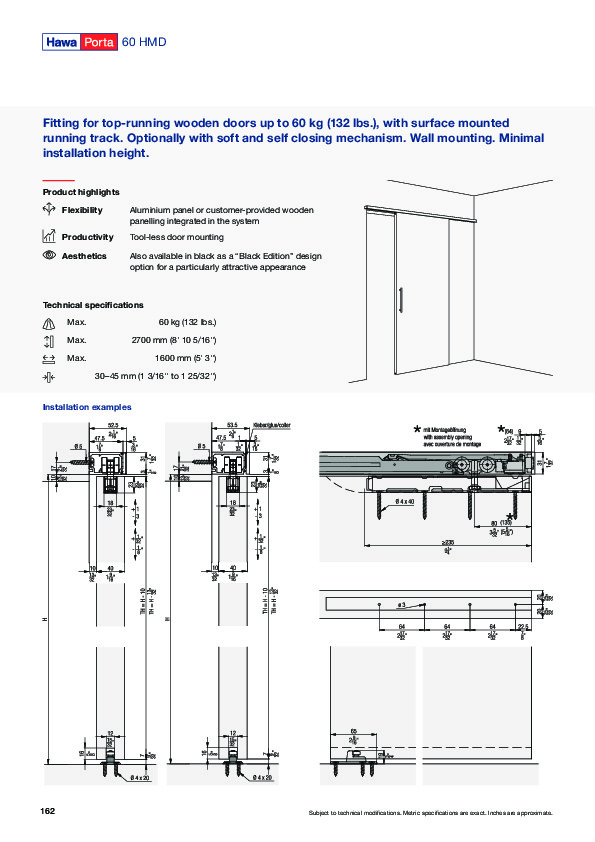

HAWA Porta 60 HMD - hardware system catalogue HAWA Porta 60 HMD - hardware system catalogue
HAWA Porta 60/100 HM/HMD and Divido 100 HM - mounting instructions HAWA Porta 60/100 HM/HMD and Divido 100 HM - mounting instructions
HAWA SoftClose mechanism for Porta and Divido 60/100 systems. Mounting instructions HAWA SoftClose mechanism for Porta and Divido 60/100 systems. Mounting instructions


VIDEO - HAWA Porta assembly


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. HAWA Porta 60/100 top running track, wall-mounted, aluminium anodised, 2500mm
    HAWA Porta 60/100 top running track, wall-mounted, aluminium anodised, 2500mm
    Code: SB00019478
    Art. Nr.: 057.3112.250
    Price:
    From €137.88
    In Stock: 5 pc.
  2. HAWA Porta 60/100 top running track, wall-mounted, black, 2500mm
    HAWA Porta 60/100 top running track, wall-mounted, black, 2500mm
    Code: SB00020416
    Art. Nr.: 057.3112.255
    Price:
    From €173.82
    In Stock: 3 pc.
    Visma Quote
  3. HAWA Porta 60/100 top running track, wall-mounted, aluminium anodised, 3500mm
    HAWA Porta 60/100 top running track, wall-mounted, aluminium anodised, 3500mm
    Code: SB00020415
    Art. Nr.: 057.3112.350
    Price:
    From €193.19
    In Stock: 2 pc.
  4. HAWA Porta 60/100 top running track, wall-mounted, black, 3500mm
    HAWA Porta 60/100 top running track, wall-mounted, black, 3500mm
    Code: SB00020417
    Art. Nr.: 057.3112.355
    Price:
    From €242.11
    In Stock: 2 pc.
  5. HAWA Porta 60 HM/HMD sliding door hardware set for 1 leaf, w/o track, black finish
    HAWA Porta 60 HM/HMD sliding door hardware set for 1 leaf, w/o track, black finish
    Code: SB00020413
    Art. Nr.: 057.3133.084
    Price:
    From €140.83
    In Stock: 4 pc.
    Visma Quote

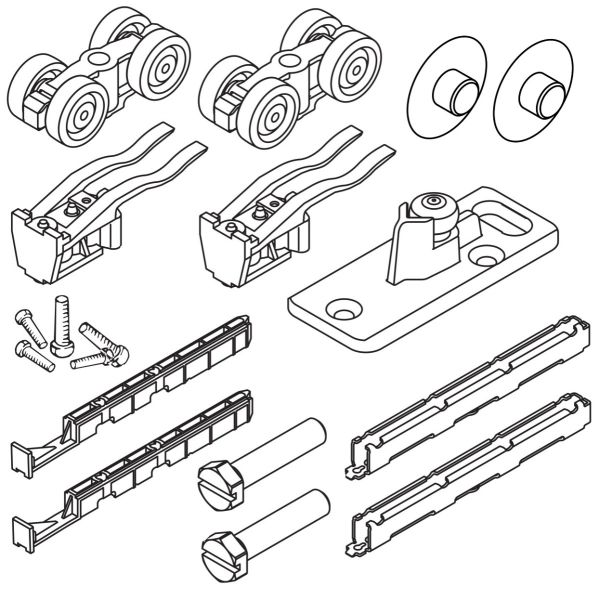

  6. HAWA Porta 60 HM/HMD sliding door hardware set for 1 leaf, w/o track
    HAWA Porta 60 HM/HMD sliding door hardware set for 1 leaf, w/o track
    Code: SB00009871
    Art. Nr.: 057.3133.072
    Price:
    From €135.72
    In Stock: 2 pc.
  7. HAWA Porta 60/100 HMD track cover cap, aluminium anodised,3500mm
    HAWA Porta 60/100 HMD track cover cap, aluminium anodised,3500mm
    Code: SB00020418
    Art. Nr.: 057.3113.350
    Price:
    From €60.05
    In Stock: 2 pc.
  8. HAWA Porta 60/100 HMD track cover cap, black, 3500mm
    HAWA Porta 60/100 HMD track cover cap, black, 3500mm
    Code: SB00020420
    Art. Nr.: 057.3113.355
    Price:
    From €73.71
    In Stock: 2 pc.
  9. HAWA Porta 60/100 HMD track cover cap, aluminium anodised, 2500mm
    HAWA Porta 60/100 HMD track cover cap, aluminium anodised, 2500mm
    Code: SB00019480
    Art. Nr.: 057.3113.250
    Price:
    From €42.02
    In Stock: 6 pc.
  10. HAWA Porta 60/100 HMD track cover cap, black, 2500mm
    HAWA Porta 60/100 HMD track cover cap, black, 2500mm
    Code: SB00020419
    Art. Nr.: 057.3113.255
    Price:
    From €52.64
    In Stock: 3 pc.
    Visma Quote
  11. HAWA Porta 60/100 HMD track end caps (2 pc.), black PVC
    HAWA Porta 60/100 HMD track end caps (2 pc.), black PVC
    Code: SB00020422
    Art. Nr.: 057.3131.075
    Price:
    From €19.83
    In Stock: 5 pc.
    Visma Quote
  12. HAWA Porta 60/100 HMD track end caps (2 pc.), grey PVC
    HAWA Porta 60/100 HMD track end caps (2 pc.), grey PVC
    Code: SB00020421
    Art. Nr.: 057.3131.072
    Price:
    From €15.40
    In Stock: 14 pāris
  13. HAWA Porta 60/100, Divido 100 one-sided SoftClose mechanism for leaf weight 10-60 kg
    HAWA Porta 60/100, Divido 100 one-sided SoftClose mechanism for leaf weight 10-60 kg
    Code: SB00019589
    Art. Nr.: 042.3102.072
    Price:
    From Special Price €97.64 was €150.21
    In Stock: 7 pc.
Manufacturer Hawa
Track installation Wall mounting
Series PORTA
Design surface-mounted track
system type straight sliding door system
mode of operation manual
SOFT CLOSE possible
maximum opening width 1535 mm
purpose for interior doors / furniture doors
leaf material wood
leaf maximum weight 60 kg
leaf width līdz 1600 mm
leaf thickness 30-45 mm
leaf height līdz 2700 mm
height adjustment +/-3 mm
material aluminium anodised
