HAWA PORTA 60HMT Pocket ceiling-mounted wall pocket hardware system for sliding doors

Product code
PORTA-60HMT-PO
Hawa View catalogue of manufacturer

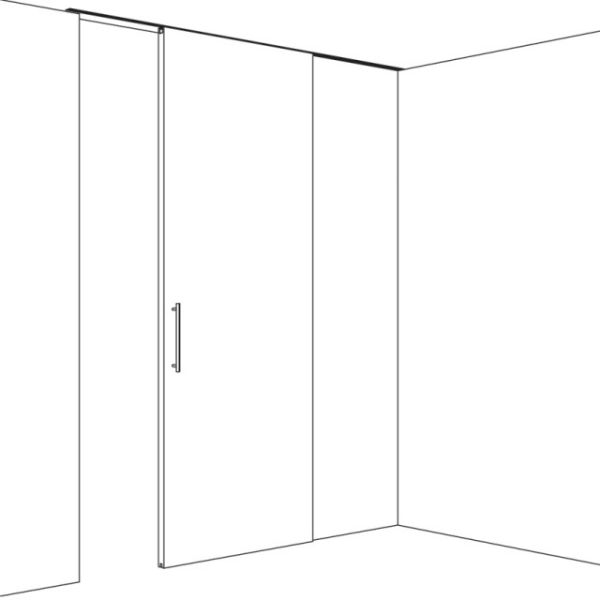

main product photo

From €260.44

Reset selection

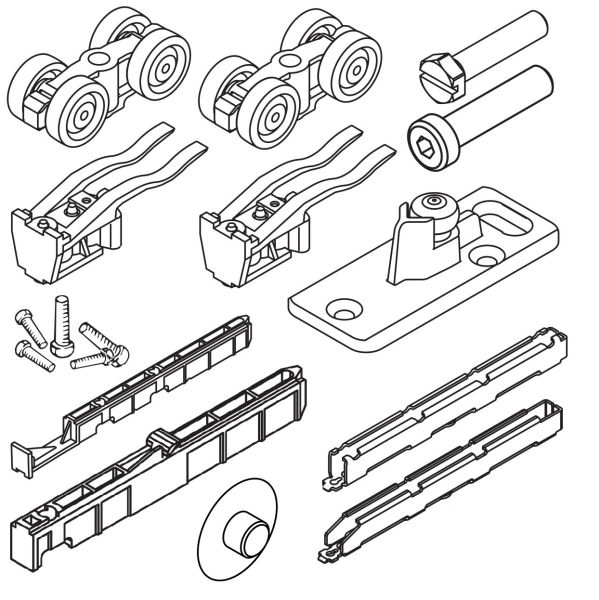

HAWA Porta 60 HMT Pocket sliding door hardware set for 1 leaf, w/o track   €135.72
Code: SB00020424
Art. Nr.: 057.3133.074
In Stock. Available: 2 grt.
Can be ordered in full packages of pcs.
HAWA Porta 60/100 top running track set   €124.72
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.

Price as configured €260.44

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

HAWA PORTA 60 HMT Pocket ceiling-mounted wall pocket hardware system for sliding doors

Manufacturer - HAWA (Switzerland)

  • hardware system for wooden sliding doors weighing up to 60 kg
  • track installation: ceiling-integrated or ceiling surface-mounted
  • wall pocket system
  • minimal installation height
  • convenient continuous adjustment
  • ball-bearing rollers ensure high comfort in use
  • elegant profiles, concealed mechanisms
  • flexible solution for premium interior design projects in private and public buildings, such as walk-in-wardrobes, large separating doors between the dining and living area, and any kind of room partitioning
  • max leaf height: 2700 mm
  • max leaf width: 1600 mm
  • max opening width: 1560 mm
  • leaf thickness: 30-80 mm
  • max load: 60 kg
  • adjustable leaf installation height ± 3 mm
  • track length: 2000 mm / 2500 mm
  • track material: aluminium anodised
  • additional equipment: soft closing mechanism integrated into the track, optimally brakes the door according to its weight and movement speed
  • optional add-on function to Soft Close: push-to-open mechanism that activates door opening upon a light push

Documents and further details
HAWA Porta 60 HMT Pocket - system catalog (EN) HAWA Porta 60 HMT Pocket - system catalog (EN)
HAWA Porta 60/100 HMT - mounting instructions HAWA Porta 60/100 HMT - mounting instructions
HAWA SoftClose mechanism for Porta and Divido 60/100 systems. Mounting instructions HAWA SoftClose mechanism for Porta and Divido 60/100 systems. Mounting instructions


VIDEO - HAWA Porta 60/100 HMT assembly



VIDEO - Soft Close mechanism with Push-to-Open function


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. HAWA Porta 60 HMT Pocket sliding door hardware set for 1 leaf, w/o track
    HAWA Porta 60 HMT Pocket sliding door hardware set for 1 leaf, w/o track
    Code: SB00020424
    Art. Nr.: 057.3133.074
    Price:
    From €135.72
    In Stock: 2 set
  2. HAWA Porta 60/100 Pocket top running track set, aluminium anodised, 2000mm
    HAWA Porta 60/100 Pocket top running track set, aluminium anodised, 2000mm
    Code: SB00020425
    Art. Nr.: 057.3179.200
    Price:
    From €124.72
    In Stock: 2 kit
  3. HAWA Porta 60/100 Pocket top running track set, aluminium anodised, 2500mm
    HAWA Porta 60/100 Pocket top running track set, aluminium anodised, 2500mm
    Code: SB00019235
    Art. Nr.: 057.3179.250
    Price:
    From €154.99
    In Stock: 2 kit
  4. HAWA Porta 60/100 Pocket top running track set, aluminium anodised, 3000mm
    HAWA Porta 60/100 Pocket top running track set, aluminium anodised, 3000mm
    Code: SB00025812
    Art. Nr.: 057.3179.250
    Price:
    From €181.88
    In Stock: 1 kit
    Visma Quote

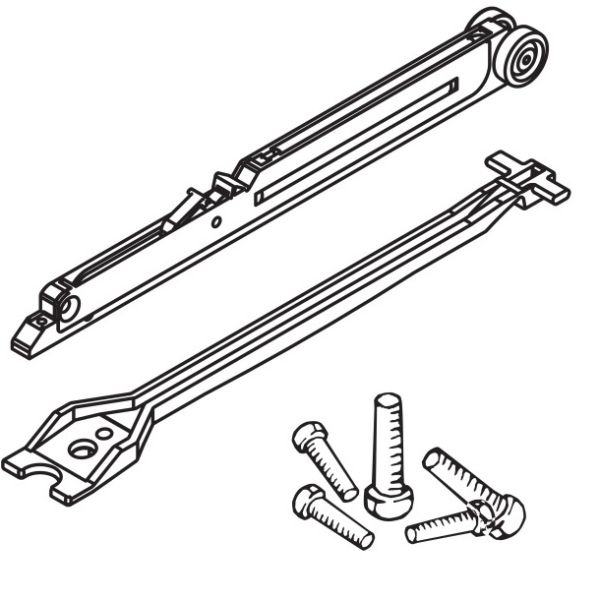

  5. HAWA Porta 60/100, Divido 100 one-sided SoftClose mechanism for leaf weight 10-60 kg
    HAWA Porta 60/100, Divido 100 one-sided SoftClose mechanism for leaf weight 10-60 kg
    Code: SB00019589
    Art. Nr.: 042.3102.072
    Price:
    From Special Price €97.64 was €150.21
    In Stock: 7 pc.
  6. HAWA Push-to-Open 40-100 kg mechanism
    HAWA Push-to-Open 40-100 kg mechanism
    Code: SB00019223
    Art. Nr.: 057.3178.071
    Price:
    From €173.92
    In Stock: 4 pc.
Manufacturer Hawa
Track installation Ceiling mounting, Ceiling mounting recessed
Series PORTA
Design Pocket solution
system type straight sliding door system
mode of operation manual
SOFT CLOSE possible
maximum opening width 1560 mm
purpose for interior doors / furniture doors
leaf material wood
leaf maximum weight 60 kg
leaf width līdz 1600 mm
leaf thickness 30-80 mm
leaf height līdz 2700 mm
height adjustment +/-3 mm
material aluminium anodised
