Mortise lock Vi22 PZ TITAN

Product code
MB00008794-TI
SSF

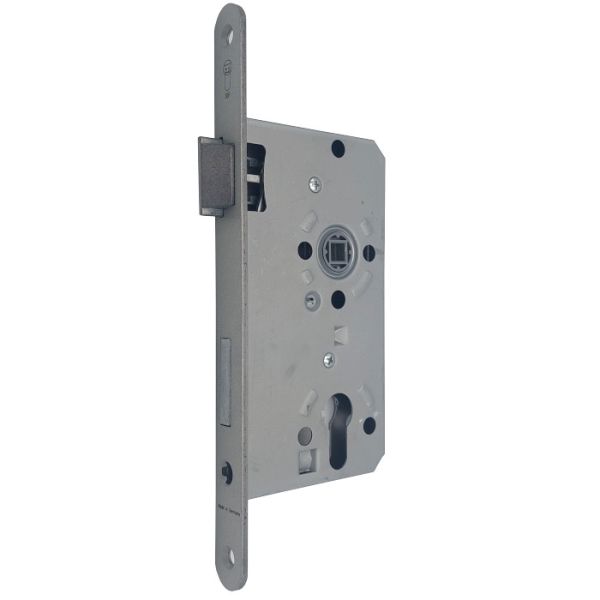

main product photo
All prices include VAT
From €7.38 €10.54
Only %1 left
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

Mortise lock Vi22 PZ TITAN

Manufacturer - SSF (Germany)

  • suitable for interior door with low usage
  • lock type: PZ
  • grade 2 lock for interior door
  • closed galvanised lock case
  • galvanised cast metal latch and bolt
  • spindle square hole diameter: 8 mm
  • steel handle hole with polyamide bearing shells
  • additional protection for mechanism in handle and lock part
  • spindle depth D: 55 mm
  • centre distance: 72 mm
  • bright nickel-plated key
  • key-operated latch with a double key turn
  • face plate: rounded
  • face plate width: 20 mm
  • when ordering, please indicate door swing direction
  • classification code according to EN 12209: 2 L  4 0 0 B 2 B C 2 0
  • face plate: varnished titanium



Dokumentācija

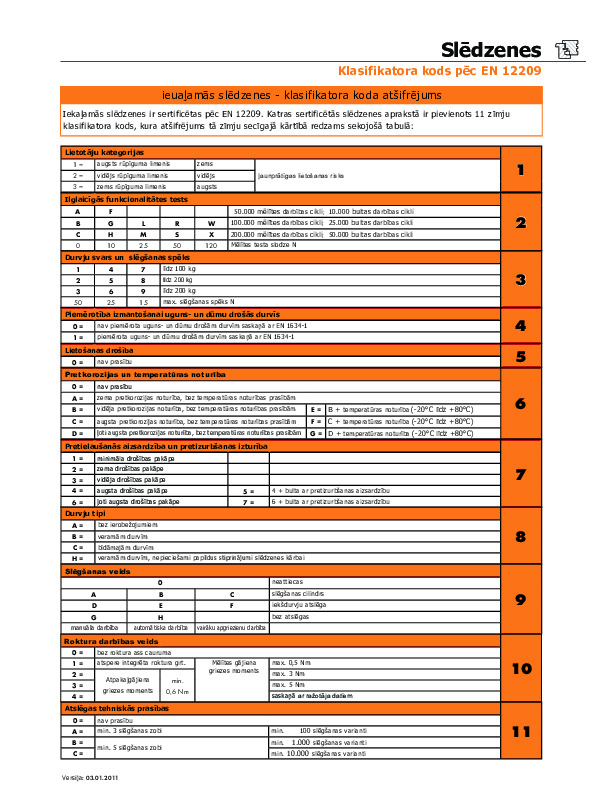

Lock classifier EN 12209 Lock classifier EN 12209

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Vi 22 lock PZ 55/72, titanium lacquered, LEFT
    Vi 22 lock PZ 55/72, titanium lacquered, LEFT
    Code: SB00002897
    Art. Nr.: V2201 51/101G
    NOT AVAILABLE FOR ORDER! Only the quantity currently in stock is available.
    Price:
    From Special Price €7.38 was €10.54
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 38 pc.
  2. Vi 22 lock PZ 55/72, titanium lacquered, RIGHT
    Vi 22 lock PZ 55/72, titanium lacquered, RIGHT
    Code: SB00002900
    Art. Nr.: V2201 51/102G
    NOT AVAILABLE FOR ORDER! Only the quantity currently in stock is available.
    Price:
    From Special Price €7.38 was €10.54
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 41 pc.
Manufacturer SSF
lock type single-point lock for hinged doors
lock operation mechanical
installation type mortise
purpose for interior doors
leaf material for wooden and metal doors
load capacity middle
class as per EN 12209 (DIN 18251) class 2 according to EN 12209
fire safety not suitable for fire safety doors
Compatibility standard German (DIN)
possible spindle depth 55 mm
door direction when ordering please indicate door swing direction
locking function PZ / BB / WC / BAC
centre distance PZ 72 mm
centre distance BB 72 mm
centre distance WC 78 mm
lock case galvanised closed
latch material cast galvanised metal
latch key-retractable (PZ)
lock bolt material cast, galvanised metal
bolt projection 20 mm
lock bolt double utrn (PZ)
sound insulation Soft-Lock latch (additional equipment)
handle square spindle size 8 mm
bundling options may be combined with rolling latch KFV 115B
face plate shape rounded
face plate width 20 mm
face plate length 235 mm
face plate finish Nerūsējošais tērauds / titāntonis lakots / brunēti krāsota / matēts misiņš, melna krāsota
