To purchase a modular cylinder, please specify the required cylinder length in the comment section below the colour/finish option.
The cylinder will be assembled at the UKSELINGIDPLUSS.ee workshop to the desired length by combining the necessary extension modules.
Fee for cylinder assembly: 5 EUR + VAT (please include service item PK67 in your order).
If you choose to purchase the cylinder in an unassembled state, the service fee does not apply.

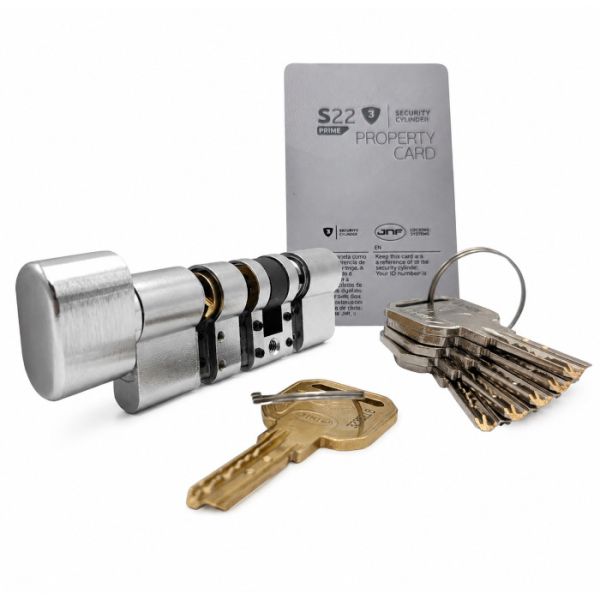

Modular security cylinder JNF S22 with knob B7
Manufacturer - JNF (Portugal)
- modular european cylinder with oval-shaped knob B7
- the high-precision modular construction allow a wide range of cylinder lengths while ensuring a fast response to custom requirements
- the cylinder length is achieved by combining the required number of extension modules
- 6 spring pins on each locking side + up to 4 extra spherical pins
- drill-, tamper-, torque- and pick-resistant
- anti-bump technology
- can be used in Masterkey and key-aliked systems
- certified in accordance with EN 1303, classification code: 1 6 0 B 0 C 6 A
- the number of key combinations - 300 000, exceeding the requirements of Grade 6 of EN 1303
- suitable for use with fire- and smoke-rated doors in accordance with EN 1303
- high corrosion resistance: grade C according to EN 1303 standard
- temperature resistance: –25°C to +65°C
- durability exceeds the EN 1303 Grade 6 requirement of 25,000 operating cycles
- base cylinder length: 35-35 mm
- extension increment: 5 mm
- maximum length of one side: 115 mm
- maximum total length: 230 mm
- supplied with 3 brass keys.
- supplied with 5 brass keys in a sealed package, a key code card, and 1 construction key (allows to change cylinder combination by changing the key without having to replace the cylinder itself, ideal for the construction phase of buildings)
- key duplication requires a security card, can be ordered through an authorized dealer
- material: brass / PVD coating for use in particularly harsh environments
- available finishes:
- satin nickel
- titanum black PVD (TB)
- titanum gold PVD (TG)
- titanum copper PVD (TCO)
- titanum chocolate PVD (TCH)
- Products
- Price
- In Stock
- Quantity
-

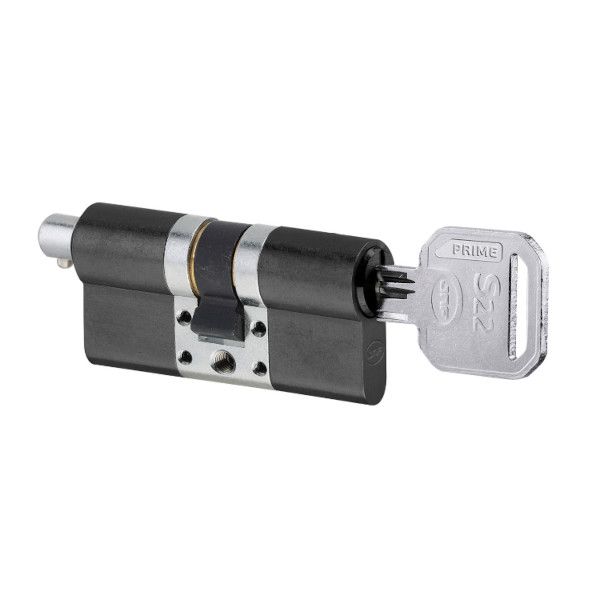

S22 modular cylinder with knob connector P35-35mm, 1+5 keys, black PVD (TB)Code: SB00030266Art. Nr.: IN19S22P3535SBTBPrice:From €48.34In Stock: 0 pc. -

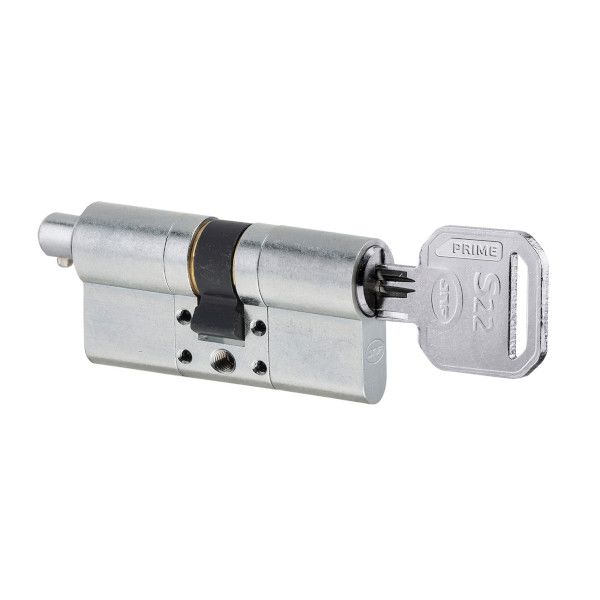

S22 modular cylinder with knob connector P35-35mm, 1+5 keys, satin nickelCode: SB00030268Art. Nr.: IN19S22P3535SBPrice:From €31.48In Stock: 10 pc. -

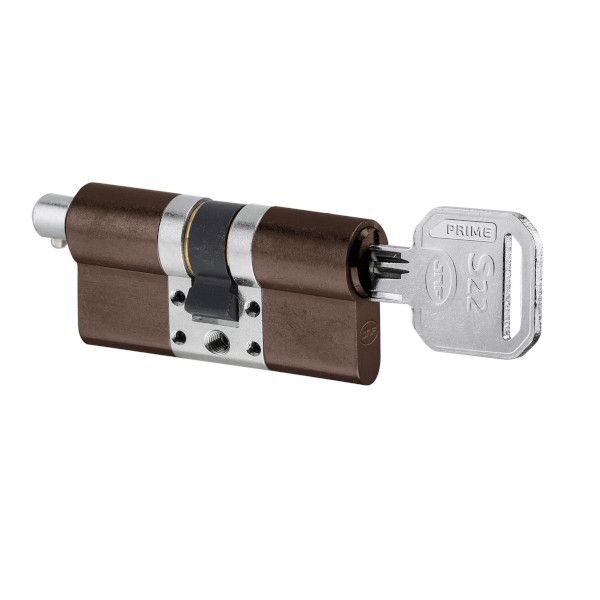

S22 modular cylinder with knob connector P35-35mm, 1+5 keys, chocolate PVD (TCH)Code: SB00030265Art. Nr.: IN19S22P3535SBTCHPrice:From €48.34In Stock: 0 pc. -

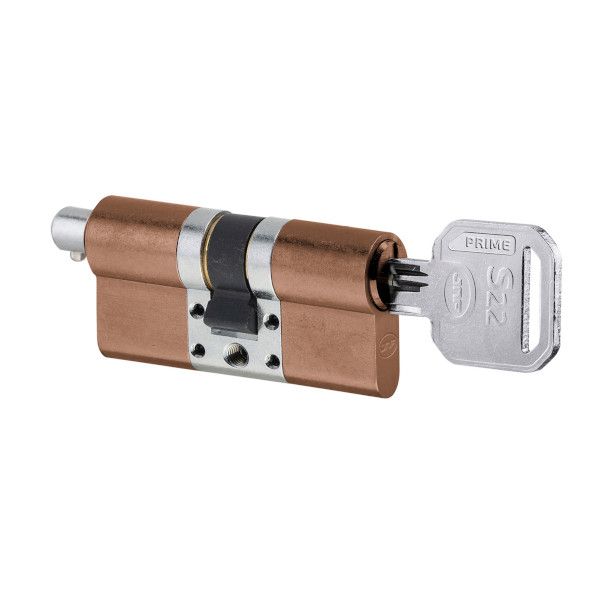

S22 modular cylinder with knob connector P35-35mm, 1+5 keys, copper PVD (TCO)Code: SB00030264Art. Nr.: IN19S22P3535SBTCOPrice:From €48.34In Stock: 0 pc. -

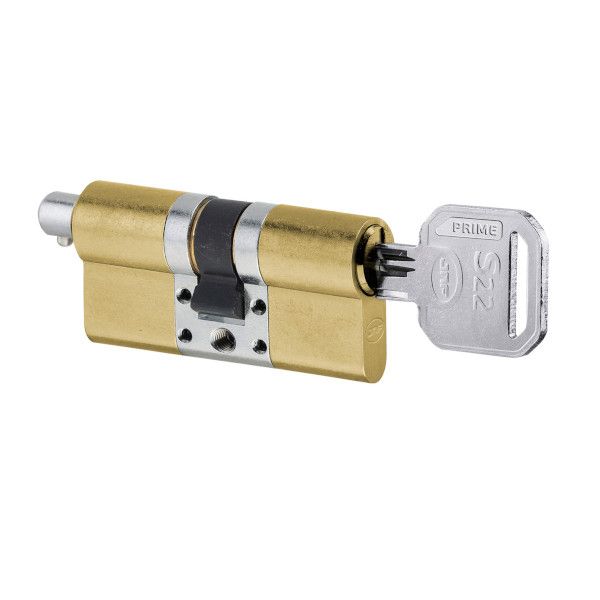

S22 modular cylinder with knob connector P35-35mm, 1+5 keys, gold PVD (TG)Code: SB00030263Art. Nr.: IN19S22P3035SBTGPrice:From €48.34In Stock: 3 pc. -
B7 Oval-shaped cylinder knob, black RAL9005Code: SB00028075Price:From €5.63In Stock: 96 pc. -
B7 Oval-shaped cylinder knob, satin nickelCode: SB00028016Price:From €3.70In Stock: 98 pc. -
B7 Oval-shaped cylinder knob, chocolate PVD (TCH)Code: SB00028204Price:From €9.72In Stock: 5 pc. -
B7 Oval-shaped cylinder knob, copper PVD (TCO)Code: SB00028203Price:From €9.72In Stock: 6 pc. -
B7 Oval-shaped cylinder knob, gold PVD (TG)Code: SB00028202Price:From €9.72In Stock: 9 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
Service - assembly of JNF modular profile cylindersCode: PK67Price:From €6.20In Stock: 0 pc. -
Service – key cutting for special profiles – JNF S22, Wilka W3600Code: PK25Price:From €4.59In Stock: 0 pc. -
Key template S22Code: SB00030583Art. Nr.: IN19S22CBPrice:From €1.24In Stock: 20 pc. -
JNF modular cylinder extensor profile 5mmCode: SB00028154Art. Nr.: IN19S1135Price:From €3.17In Stock: 114 pc. -
JNF modular cylinder extensor profile 10mmCode: SB00028155Art. Nr.: IN19S11310Price:From €4.39In Stock: 196 pc. -
JNF modular cylinder extensor profile 15mmCode: SB00028156Art. Nr.: IN19S11315Price:From €5.54In Stock: 148 pc. -
JNF modular cylinder extensor profile 20mmCode: SB00028157Art. Nr.: IN19S11320Price:From €6.76In Stock: 109 pc. -
JNF modular cylinder extensor rotor 5mmCode: SB00028158Art. Nr.: IN19S1155Price:From €0.73In Stock: 122 pc. -
JNF modular extensor rotor 10mmCode: SB00028159Art. Nr.: IN19S11510Price:From €0.97In Stock: 201 pc. -
JNF modular cylinder extensor rotor 15mmCode: SB00028160Art. Nr.: IN19S11515Price:From €1.29In Stock: 149 pc. -
JNF modular cylinder extensor rotor 20mmCode: SB00028161Art. Nr.: IN19S11520Price:From €1.59In Stock: 124 pc. -
JNF modular cylinder extensor interior preto 5mmCode: SB00028162Art. Nr.: IN19S1185Price:From €0.12In Stock: 145 pc. -
JNF modular cylinder extensor interior preto 10mmCode: SB00028163Art. Nr.: IN19S11810Price:From €0.12In Stock: 223 pc. -
JNF modular cylinder extensor interior preto 15mmCode: SB00028164Art. Nr.: IN19S11815Price:From €0.12In Stock: 169 pc. -
JNF modular cylinder extensor interior preto 20mmCode: SB00028165Art. Nr.: IN19S11820Price:From €0.12In Stock: 121 pc.
| Manufacturer | JNF |
|---|---|
| profile cylinder type | cylinder with knob |
| door knob shape | oval |
| locking cylinder standard | Euro profile cylinder |
| anti-intruder security | class A according to EN 1303 |
| suitable for use in locking systems | suitable for Masterkey and equal locking systems |
| number of locking lugs | 6 |
| extension increment | 5 mm |
| number of keys | 5 + 1 construction key |
| fire safety | suitable for fire safety doors |
| cylinder length | modular |
| minimum 1 side length | 35 mm |
| maximum 1 side length | 115 mm |
| maximum total length | 230 mm |
| key duplication | can be duplicated at distributor with security card |
| key duplication in the workshop UKSELINGIDPLUSS.ee | can be duplicated on site |
| material | brass |
| anti-corrosion resistance | class C according to EN 1303 - very high |
| material properties (for specific finishes see tech. data) | PVD coating - suitable for use in aggressive environments |
