Modular electronic cylinder S90 S-TRONIC

Product code
MB00009874
JNF View catalogue of manufacturer
main product photo
All prices include VAT
From €129.60
Only %1 left

Cylinder minimum standard length: P35–30 mm.

To purchase this cylinder in a different length, please specify the desired cylinder length in the comment section under the processing options. (The length on the inner side is denoted by “P”.)

The cylinder in the required length will be assembled at the UKSELINGIDPLUSS.ee workshop by combining the necessary extension modules to achieve the specified size.

Fee for cylinder preparation: 5 EUR + VAT (please add service item PK67 to your order).

If you choose to purchase the cylinder in an unassembled state, the service fee does not apply.

Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

Modular electronic cylinder S90 S-TRONIC

Manufacturer - JNF (Portugal)

  • convenient and cost-effective solution for locking systems with access control
  • high-precision modular construction
  • compatible with VOYAGER access control products
  • simple and intuitive to use
  • maintenance-free
  • operated via mobile app VOYAGER by JNF or magnetic card



Technical data

  • certified according to EN 1670:2007
  • Bluetooth 4.0 technology
  • power supply: 2 x CR2-3V batteries
  • compatible with gateway
  • LED indicators
  • Mifare 13.56 MHz card reader
  • max number of cards: 1000
  • IP rating: IP55
  • temperature range: from -20℃ to +50℃
  • knob diameter: 40 mm
  • knob length: 50 mm
  • min lock spindle depth: 30 mm
  • min cylinder length: P35-30 mm / P35-35 mm
  • max length on one side: 115 mm
  • battery durability: up to 10 000 cycles
  • optical and acoustic low battery indicator
  • exterior casing made of stainless steel
  • material: stainless steel EN 1.4301
  • available finishes:
    • satin
    • gold PVD
    • copper PVD
    • chocolate brown PVD
    • satin black PVD



VOYAGER by JNF app

https://voyagerbyjnf.com/en

JNF Voyager app - Terms of use (EN) JNF Voyager app - Terms of use (EN)



All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

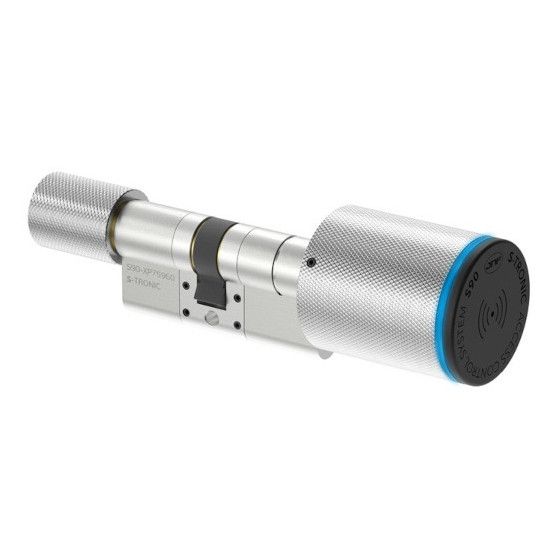

  1. VOYAGER S90 S-TRONIC modular electronic cylinder P35-30 mm, stainless steel
    VOYAGER S90 S-TRONIC modular electronic cylinder P35-30 mm, stainless steel
    Code: SB00028361
    Art. Nr.: IN19S903035B1
    Price:
    From €129.60
    In Stock: 3 pc.

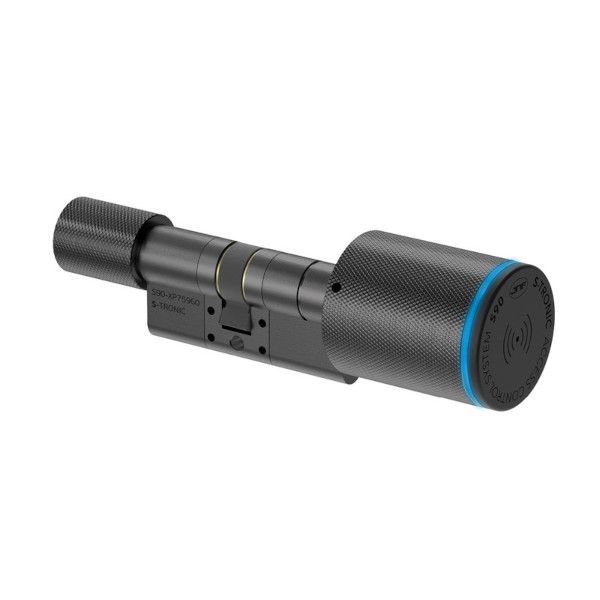

  2. VOYAGER S90 S-TRONIC modular electronic cylinder P35-30, black PVD (TB)
    VOYAGER S90 S-TRONIC modular electronic cylinder P35-30, black PVD (TB)
    Code: SB00028362
    Art. Nr.: IN19S903035B1TB
    Price:
    From €140.67
    In Stock: 0 pc.
    Visma Quote
  3. VOYAGER S90 S-TRONIC modular electronic cylinder P35-30, chocolate PVD (TCH)
    VOYAGER S90 S-TRONIC modular electronic cylinder P35-30, chocolate PVD (TCH)
    Code: SB00028365
    Art. Nr.: IN19S903035B1TCH
    Price:
    From €140.67
    In Stock: 0 pc.
    Visma Quote

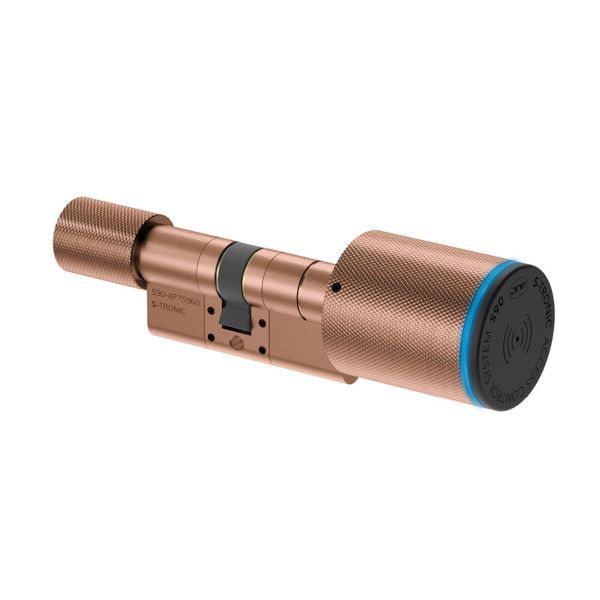

  4. VOYAGER S90 S-TRONIC modular electronic cylinder P35-30, copper PVD (TCO)
    VOYAGER S90 S-TRONIC modular electronic cylinder P35-30, copper PVD (TCO)
    Code: SB00028364
    Art. Nr.: IN19S903035B1TCO
    Price:
    From €140.67
    In Stock: 0 pc.
    Visma Quote

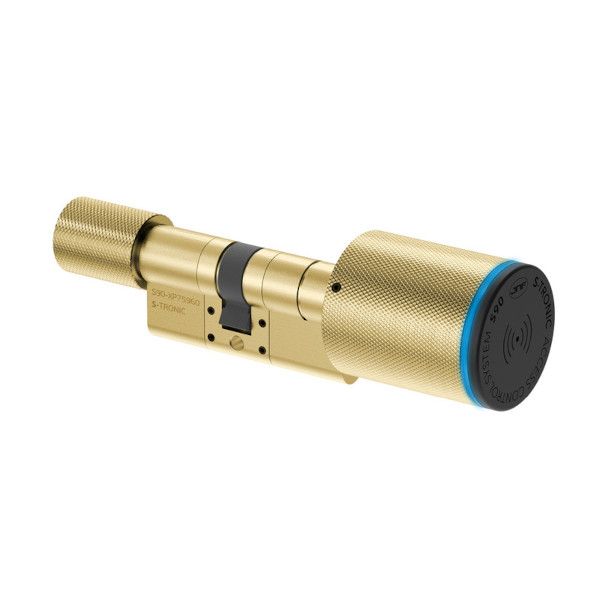

  5. VOYAGER S90 S-TRONIC modular electronic cylinder P35-30, gold PVD (TG)
    VOYAGER S90 S-TRONIC modular electronic cylinder P35-30, gold PVD (TG)
    Code: SB00028363
    Art. Nr.: IN19S903035B1TB
    Price:
    From €140.67
    In Stock: 0 pc.
    Visma Quote
  6. VOYAGER S90 S-TRONIC modular electronic cylinder P35-35 mm, stainless steel
    VOYAGER S90 S-TRONIC modular electronic cylinder P35-35 mm, stainless steel
    Code: SB00026433
    Art. Nr.: IN19S903535B1
    Price:
    From €132.80
    In Stock: 0 pc.
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Service - assembly of JNF modular profile cylinders
    Service - assembly of JNF modular profile cylinders
    Code: PK67
    Price:
    From €6.20
    In Stock: 0 pc.
  2. VOYAGER kodu panelis piekļuves kontrolei ar Bluetooth 4.0
    VOYAGER code panel for access control with Bluetooth 4.0, PIN/APP, 4xAAA
    Code: SB00025857
    Art. Nr.: IN27530
    Price:
    From €164.90
    In Stock: 8 pc.
  3. Mifare Classic 1K 13.53 Mhz card for electronic access systems
    Mifare Classic 1K 13.53 Mhz card for electronic access systems
    Code: SB00026281
    Art. Nr.: IN27153B
    Price:
    From €1.02
    In Stock: 956 pc.
  4. Mifare Classic 1K 13.56Mhz fob for electronic access systems
    Mifare Classic 1K 13.56Mhz fob for electronic access systems
    Code: SB00026282
    Art. Nr.: IN27161
    Price:
    From €3.00
    In Stock: 50 pc.
  5. VOYAGER gateway 524, WiFi, white
    VOYAGER gateway 524, WiFi, white
    Code: SB00026261
    Art. Nr.: IN27524WIFIW
    Price:
    From €105.14
    In Stock: 13 pc.
  6. VOYAGER gateway 524, WiFi, black
    VOYAGER gateway 524, WiFi, black
    Code: SB00026412
    Art. Nr.: IN27524WIFIB
    Price:
    From €105.14
    In Stock: 5 pc.
  7. VOYAGER RFID card reader, black
    VOYAGER RFID card reader, black
    Code: SB00026411
    Art. Nr.: IN27558
    Price:
    From €54.23
    In Stock: 2 pc.
  8. JNF modular cylinder extensor rotor 20mm
    JNF modular cylinder extensor rotor 20mm
    Code: SB00028161
    Art. Nr.: IN19S11520
    Price:
    From Special Price €1.36 was €1.70
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 862 pc.
  9. JNF modular cylinder extensor rotor 15mm
    JNF modular cylinder extensor rotor 15mm
    Code: SB00028160
    Art. Nr.: IN19S11515
    Price:
    From Special Price €1.10 was €1.38
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 466 pc.
  10. JNF modular extensor rotor 10mm
    JNF modular extensor rotor 10mm
    Code: SB00028159
    Art. Nr.: IN19S11510
    Price:
    From Special Price €0.83 was €1.04
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 460 pc.
  11. JNF modular cylinder extensor rotor 5mm
    JNF modular cylinder extensor rotor 5mm
    Code: SB00028158
    Art. Nr.: IN19S1155
    Price:
    From Special Price €0.62 was €0.78
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 455 pc.
  12. JNF modular cylinder extensor profile 20mm
    JNF modular cylinder extensor profile 20mm
    Code: SB00028157
    Art. Nr.: IN19S11320
    Price:
    From Special Price €5.79 was €7.24
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 862 pc.
  13. JNF modular cylinder extensor profile 15mm
    JNF modular cylinder extensor profile 15mm
    Code: SB00028156
    Art. Nr.: IN19S11315
    Price:
    From Special Price €4.75 was €5.94
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 466 pc.
  14. JNF modular cylinder extensor profile 10mm
    JNF modular cylinder extensor profile 10mm
    Code: SB00028155
    Art. Nr.: IN19S11310
    Price:
    From Special Price €3.74 was €4.69
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 460 pc.
  15. JNF modular cylinder extensor profile 5mm
    JNF modular cylinder extensor profile 5mm
    Code: SB00028154
    Art. Nr.: IN19S1135
    Price:
    From Special Price €2.70 was €3.39
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 453 pc.
Manufacturer JNF
App Voyager
compatibility standard German (DIN)
material stainless steel
leaf material for wooden and metal doors
operational temperature range No -20º līdz +50ºC
possible spindle depth Min. 30 mm
purpose for interior doors / for exterior doors
electricity supply type 2 x CR2 baterijas (iekļautas klompl.)
door knob size Ø40 x 50 mm
IP rating IP55
door knob shape cylindrical
Bluetooth 4.0
number of magnetic cards max 1000
access type app / card
Access type Mifare 13.56MHZ
minimum 1 side length 35 mm
maximum 1 side length 115 mm
limit of relative humidity līdz 90% bez kondensēšanās
profile cylinder type electronic cylinder with knob
