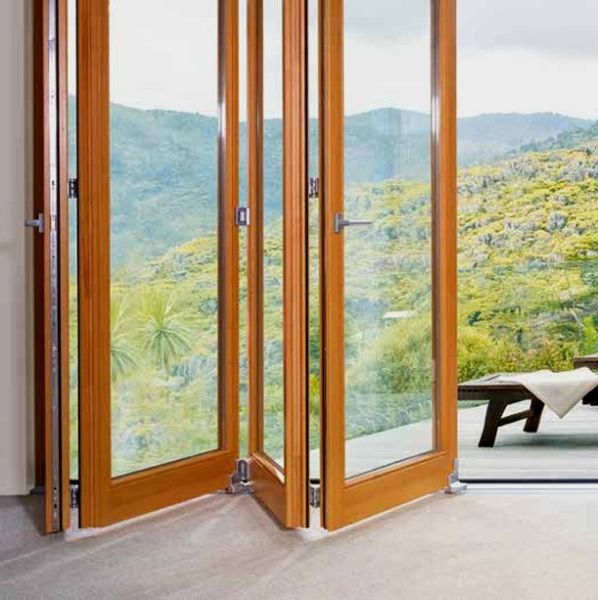

PORTAL FS PLUS Fittings for fold and slide elements
Manufacturer - SIEGENIA (Germany)
- flexible fittings for wooden, PVC and aluminium fold and slide elements of up to 80 kg in weight
- suitable for opening widths of up to 6.3 m
- wide range of design options by combining up to 7 elements in one system
- covers can be painted in different colours and are suitable for use outdoors
- flexible technology designed for efficient and highly cost-effective installation
- especially smooth sash running: top or bottom, same profile set
- low threshold version available
Technical details
- profile material: wood, PVC, aluminium
- profile type: turn & tilt profiles with 16 mm hardware groove
- sash rebate width: 330 - 900 mm
- sash rebate height: 840 - 2.360 mm / ALU: 850 - 2.400 mm
- max weight of each sash: 80 kg
- quality assurance: QM-345 certified (H3); corrosion class 5
- standard schemes: 220, 321, 330, 431, 440, 532, 541, 550, 633, 651, 660, 743, 761, 770
- top or bottom running rails
- locking handles on both inside and outside
- optional opening and locking monitoring system AEROCONTROL with magnetic locks
- turn & tilt sash can be integrated, with inward or outward opening
- spindle depth for standard locking drive: 16 mm
- spindle depth for lockable locking drive: 40 mm
- adjustable handle position: 420 - 1180 mm
- groove axle: 9 / 13 mm
- rebate height: 7 - 24 mm

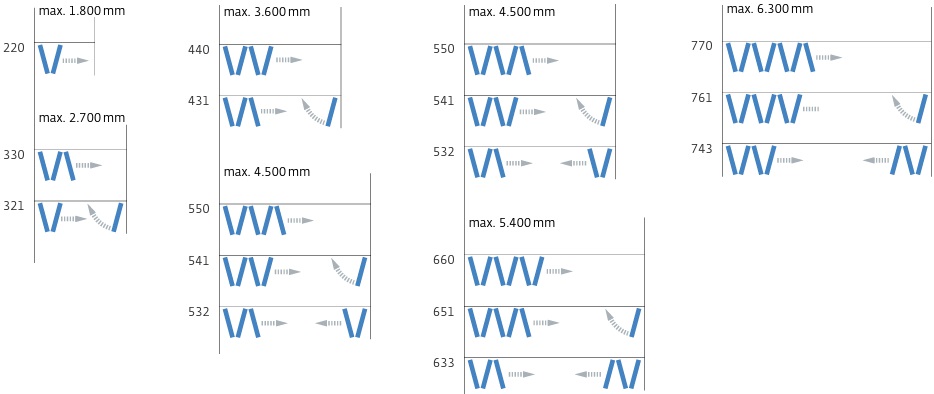

Schemes

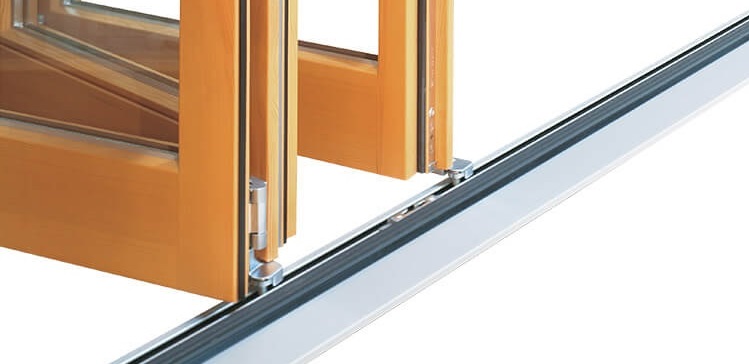

Bogie wheels
Easy folding, a barrier-free version available
- the large bogie wheels made of special PVC on ball bearings ensure perfectly smooth running of sashes and keep the need of adjustments at minimum
- brush elements keep the running rails free of dust and dirt and improve the quality of movement
- the thermally-insulated threshold prevents water condensation from forming and enables a barrier-free design

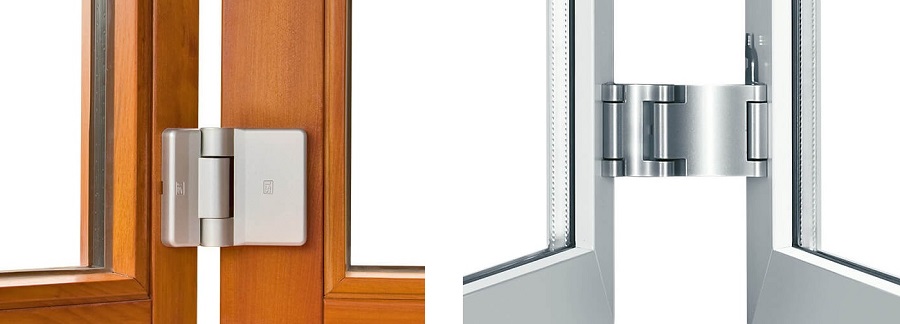

Hinges
Maintenance-free, weather-resistant and suitable also for outward-opening systems
- special friction bearings ensure easy, noiseless and long-lasting use
- maintenance-free - hinges are fitted with self-lubricating PVC bearing
- high-quality surface technology provides weather resistance
- available also in a highly anti-corrosive stainless steel finish
- suitable also for outward-opening systems
- efficient anti-intruder protection
- compatible with tilt & turn sash
- convenient design - the outsides can be cleaned from inside
Handles
- noiseless, smooth and secure running
- lasting high functional safety
- ergonomic, modern design with a wide range of colours and coordinated hardware
- large choice of variants: locking and non-locking handles in various combinations
- design and colour can be coordinated with tilt & turn window handles

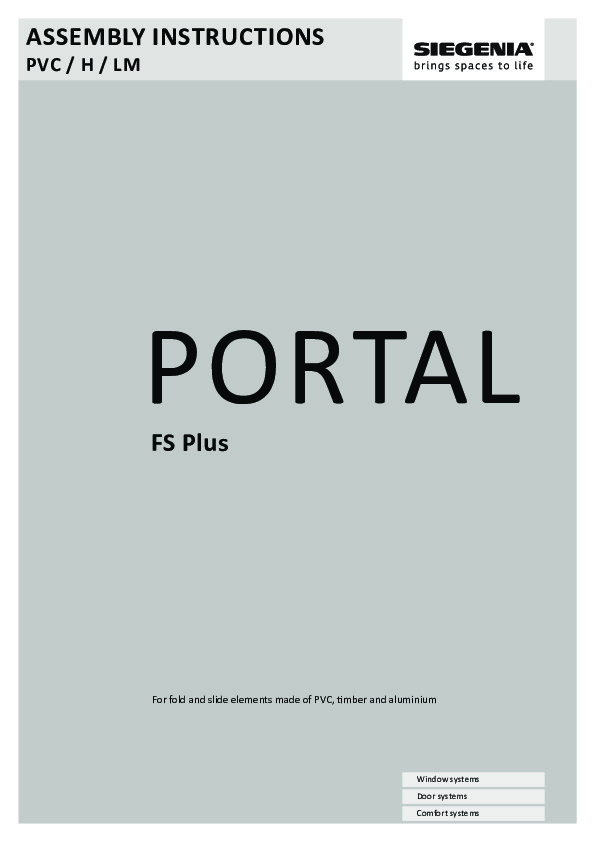

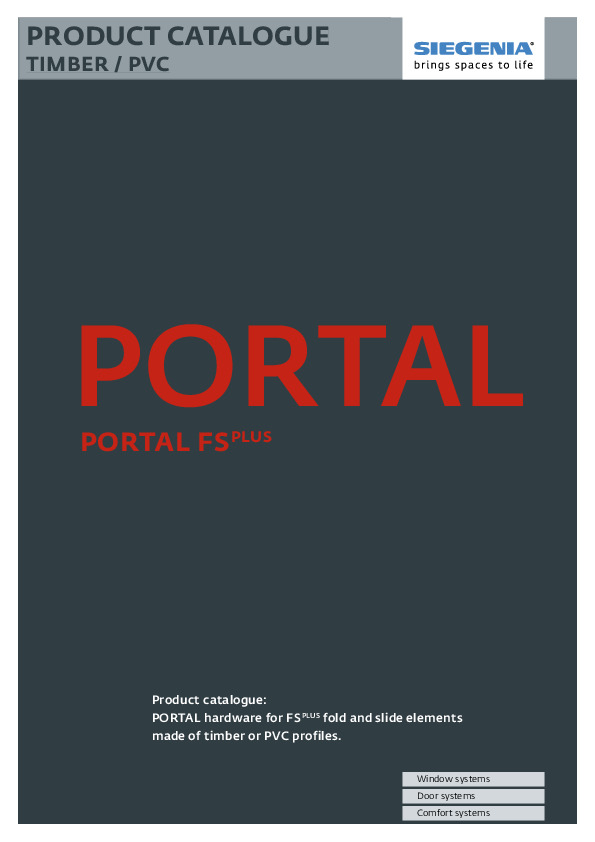

CATALOGUES and INSTRUCTIONS
Detailed assembly instructions are available at the SIEGENIA website:
->>SIEGENIA Mediacenter
| Manufacturer | SIEGENIA |
|---|---|
| Series | PORTAL |
| system type | folding-sliding system |
| purpose | for windows and facades |
| leaf material | for wooden/plastic/aluminium windows |
| mode of operation | manual |
| leaf width | līdz 900 mm |
| overlap height | 7 - 24 mm |
| smart control (SMART) | no |
| maximum opening width | 6.3 m |
| profile type | wooden, aluminium, plastic profiles |
| leaf height | 840 - 2360 mm / ALU: 850 - 2400 mm (falce) |
| possible spindle depth | standarta pārvads: 16 mm / slēdzams pārvads: 40 mm |
| environmental accessibility | yes |
