PORTAL HS Fittings for lift and slide elements

PORTAL HS fittings for lift and slide elements

Manufacturer - SIEGENIA (Germany)

• versatile and easy-to-use system for wooden, PVC and aluminium fold and slide elements
• suitable for large modern facades, with an opening width up to 12 and a total width of approx. 20 m
• comfortable and safe opening for sashes weighing up to 400 kg
• high degree of pre-assembly, optimum adjustment options and small number of components ensure efficient assembly and streamlined logistics
• convenient to order with COMFORT UNIT package: all necessary components in one set, ready for assembly
• night vent is fitted as standard
• fittings with ECO PASS threshold ensure energy-efficient barrier-free solution
• high level of basic security as standard, depending on profile, upgradable up to grade RC3
• elegant and modern handle design with wide range of available colours and variants
• optimum thermal insulation with multi-chamber PVC seals
• concealed SOFT CLOSE mechanism for quiet and controlled closing
• optional opening and locking monitoring system AEROCONTROL with magnetic locks

Technical details

• profile material: wood, PVC, aluminium (PORTAL HS 150 - wood only)
• sash width

  • PORTAL HS 150: 650 - 2.485 mm
  • PORTAL HS 250: 590 - 2.485 mm
  • PORTAL HS 350: 720 - 3.335 mm
  • PORTAL HS 400: 1.370 - 3.335 mm
• sash height
  • PORTAL HS 150/250: 1.175 - 2.690 mm
  • PORTAL HS 350/400: 1.175 - 3.325 mm
• max weight of each sash

  • PORTAL HS 150: 150 kg
  • PORTAL HS 250: 250 kg
  • PORTAL HS 350: 350 kg
  • PORTAL HS 400: 400 kg
• quality assurance: QM-345 certified (H3); corrosion class 5
• handle positions

  • PORTAL HS 150: gradually adjustable (510, 810, 910, 1.010, 1.110 mm)
  • PORTAL HS 250/350/400: 410 mm size 170; 1.010 mm sizes 220, 260
• opening schemes: A, C, D, G, G2, G3, H, K, F, E, L
• threshold with thermal insulation; optionally barrier-free threshold with 0 mm rail
• self-cleaning rollers with ball bearings; height-adjustable bogie wheels (PORTAL HS 300/400)
• anti-intruder protection: up to grade RC2, RC3
• locking handles on both inside and outside
• complies with barrier-free building requirements in accordance with DIN 18040
• design with glazing down to threshold level available (PORTAL HS 200/400)
• SOFT CLOSE function for controlled closing available
• night vent function
• compatible with passive ventilator AEROMAT Flex
• semi-automated closing available with DRIVE axxent HSA smart (except for PORTAL HS 150) which can be operated also via app SIEGENIA Comfort
• optional opening and locking monitoring system AEROCONTROL with magnetic locks

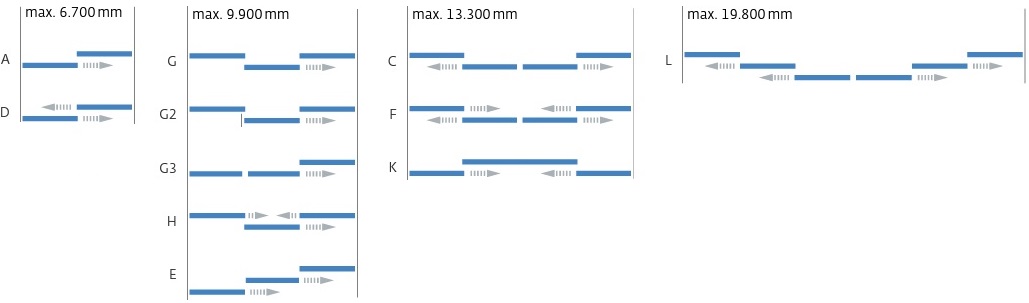

Schemes

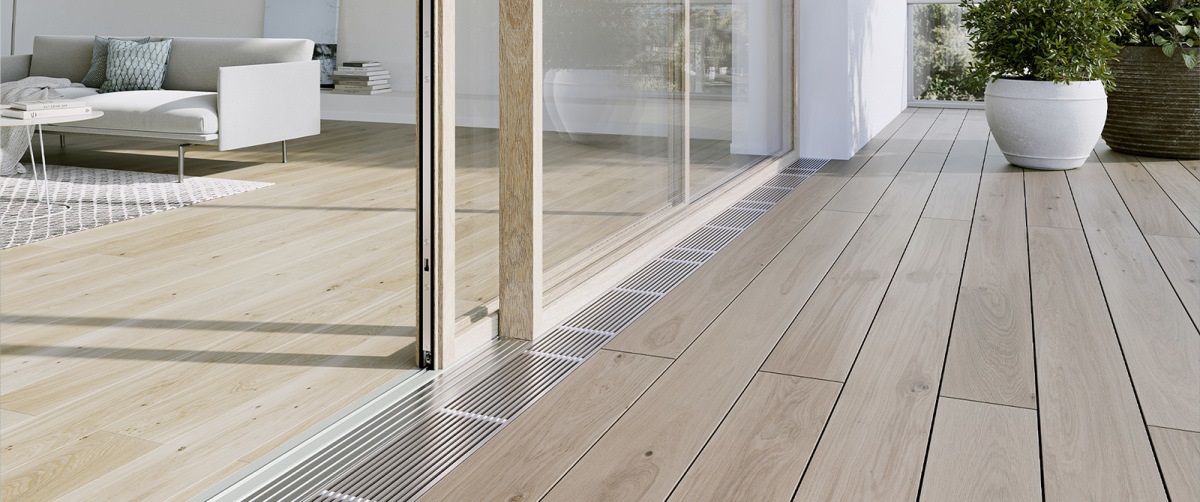

ECO PASS thresholds
Barrier-free and energy efficient

• easy-to-assemble thresholds, designed specially for PORTAL systems, available in 3 variants:
  • level threshold axxent with 0 mm running rail
  • threshold with 5 mm running rail and a small sep
  • threshold with 5 mm running rail and a transition plate
• unique 10-chamber profile ensures first-class thermal insulation and stability
• suitable for all common profile systems:
  • PVC: Budvar KF C28/48, Deceuninck HS476, Internova HST 6000, Gealan S8000 IQ, Gealan S9000, Profine PremiDoor 76, Profine PremiDoor 88, Rehau Geneo, Rehau Synego, Salamander evolutionDrive: HST, Vekaslide 82, Schüco LivIngSlide
  • wood: IV 68, IV 78, IV 88, IV 92
  • wood-aluminium: Aluron, Bug, Gutmann, Stemeseder

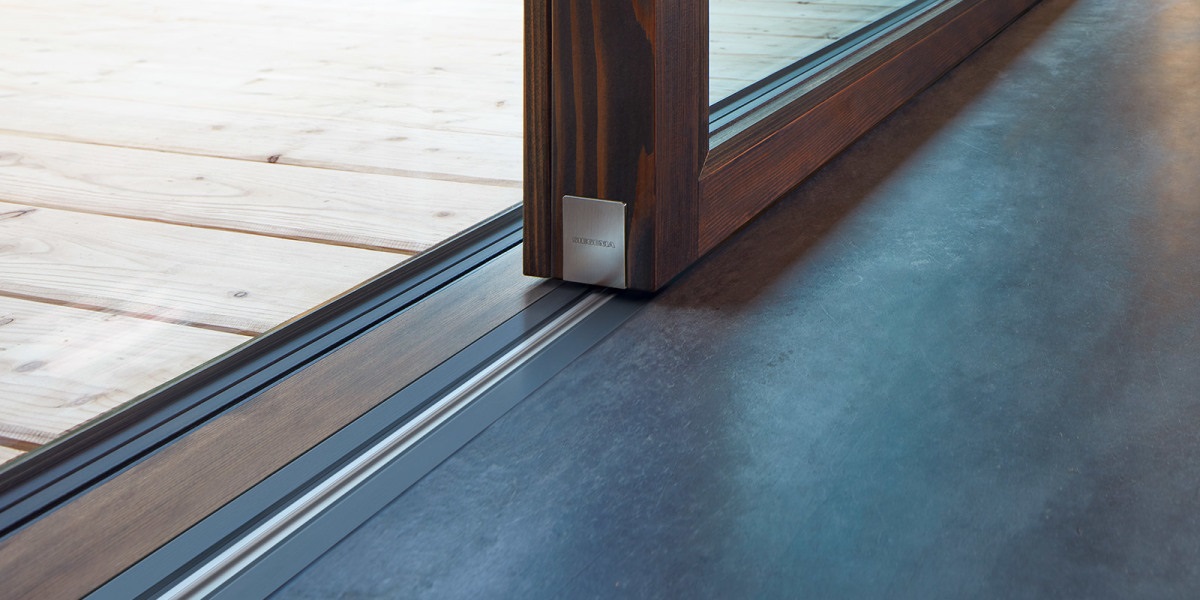

ECO PASS axxent - 0 mm barrier-free threshold

• suitable for wood-aluminium fold and slide systems
• 0 mm threshold without any incline, complies with DIN 18040-2
• optimum thermal insulation with 10-chamber profile
• excellent structural compatibility and optimum drainage system



ECO PASS - 5 mm leveling threshold

• suitable for wood-aluminium fold and slide systems
• 5 mm threshold with leveling step without any incline, complies with DIN 18040-2 standard for barrier-free systems
• optimum thermal insulation with 10-chamber profile
• 2-level drainage system ensures excellent protection against driving rain
• single piece solution



ECO PASS - threshold with 5 mm rail

• suitable for wood-aluminium fold and slide systems
• almost level connection with 5 mm threshold and leveling transition, complies with DIN 18040-2 standard for barrier-free systems
• optimum thermal insulation with 10-chamber profile

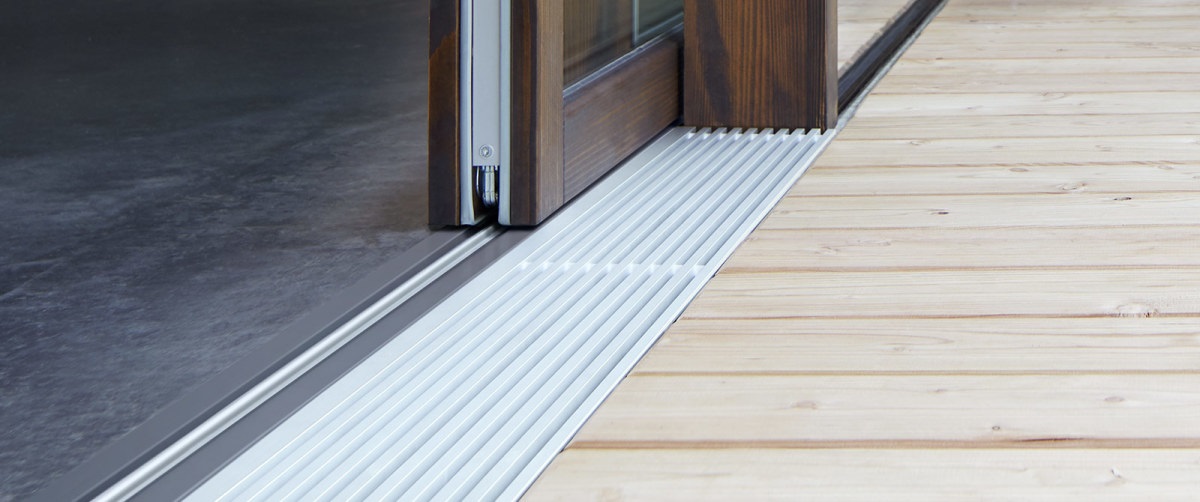

ECO PASS SKY axxent - 0 mm barrier-free threshold for full-length glazing

• suitable for wood-aluminium fold and slide systems with fixed glazing area down to threshold level
• lean sash profiles visually enlarge living space and blur the boundary between inside and outside
• threshold design is easy to match with floor and frame design
• grille design can be matched with threshold design



Gear variants for PORTAL



Standard solution with round locking bolts

• 2 or 4 robust locking bolts ensure RC2 grade anti-intruder protection
• anti-intruder protection of grade RC3 may be achieved by combining 4 locking bolts and 3 pairs of protectors for sealing rail DS28/48/28

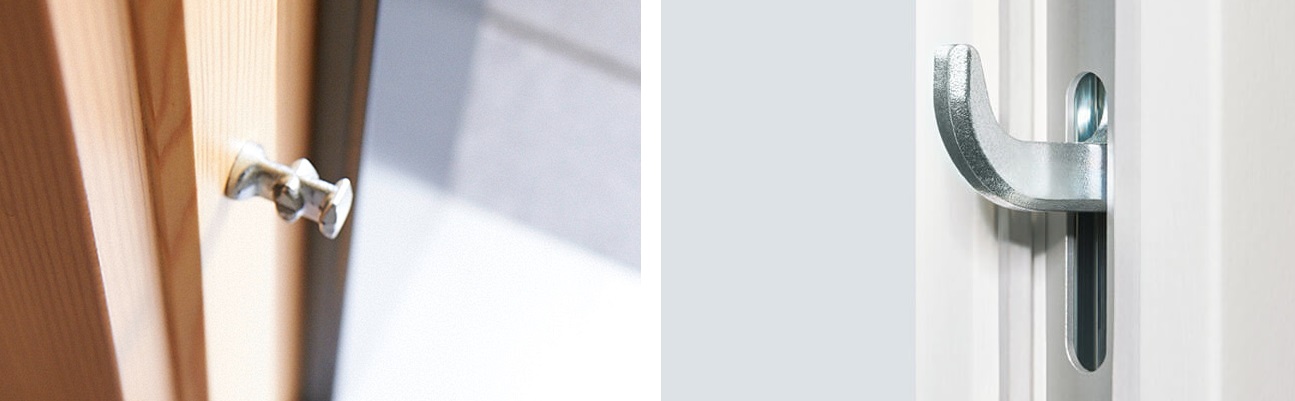

Innovative flush solution with hook bolts

• up to 3 locking hooks with block function ensure first-class sealing and anti-intruder protection of grade RC2
• fully flush when open, single plane design
• inbuilt gap vent as standard
• concealed pressure adjustment +/- 2 mm

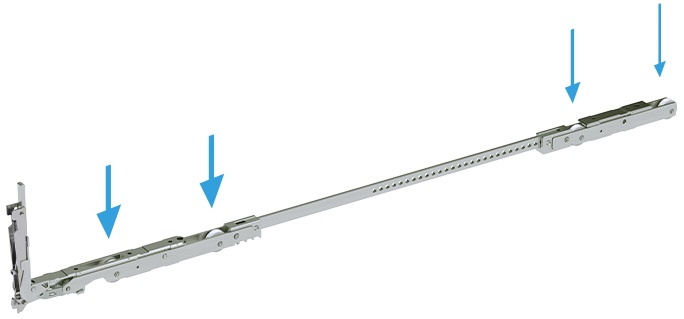

Adjustable bogie wheels
Comfort and energy efficiency

• integrated precision adjustment with readjustment reserve of 3 mm for easy lifting of the sash in the rear area
• flexible and safe adjustment of the sash during assembly, excellent tolerance compensation
• adjustment options onsite ensure smooth sliding process and tight sealing
• sash weight up to 350 kg

PORTAL seals
Simultaneous protection against heat loss and against intruders



Sealing rail DS28/48/28: smaller investment for higher level of thermal insulation and security

• multi-chamber PVC seal for optimum thermal insulation
• best compression achieved in combination with the HS 4.0 sealing system
• corresponds with anti-intruder protection standards of grade RC2 or RC3 when combined with a few additional components
• concealed screws and narrow width (only 28 mm at the top) - suitable for narrower profiles
• easy installation with pre-drilled screw holes and corner part between horizontal and vertical sealing rail
• increased sash tolerance range

Sealing rail C28/48: optimum horizontal compression

• multi-chamber PVC seal for optimum thermal insulation
• can also be mounted horizontally to seal the top sash area
• corresponds with anti-intruder protection standards of grade RC2 when combined with a few additional components
• easy, concealed fixing with pre-drilled holes
• sash tolerance range +/- 3 mm in both directions
• additional sealing brush available (optional)

Sealing rail C: easy to install, difficult to prise open

• good insulation values and thermal insulation with PVC profile with three chambers
• easy adjustment due to centre lock with compression adjustment
• large-scale seal compensates for production tolerances
• corresponds with anti-intruder protection standards of grade RC2 when combined with aluminium rear security interlocks

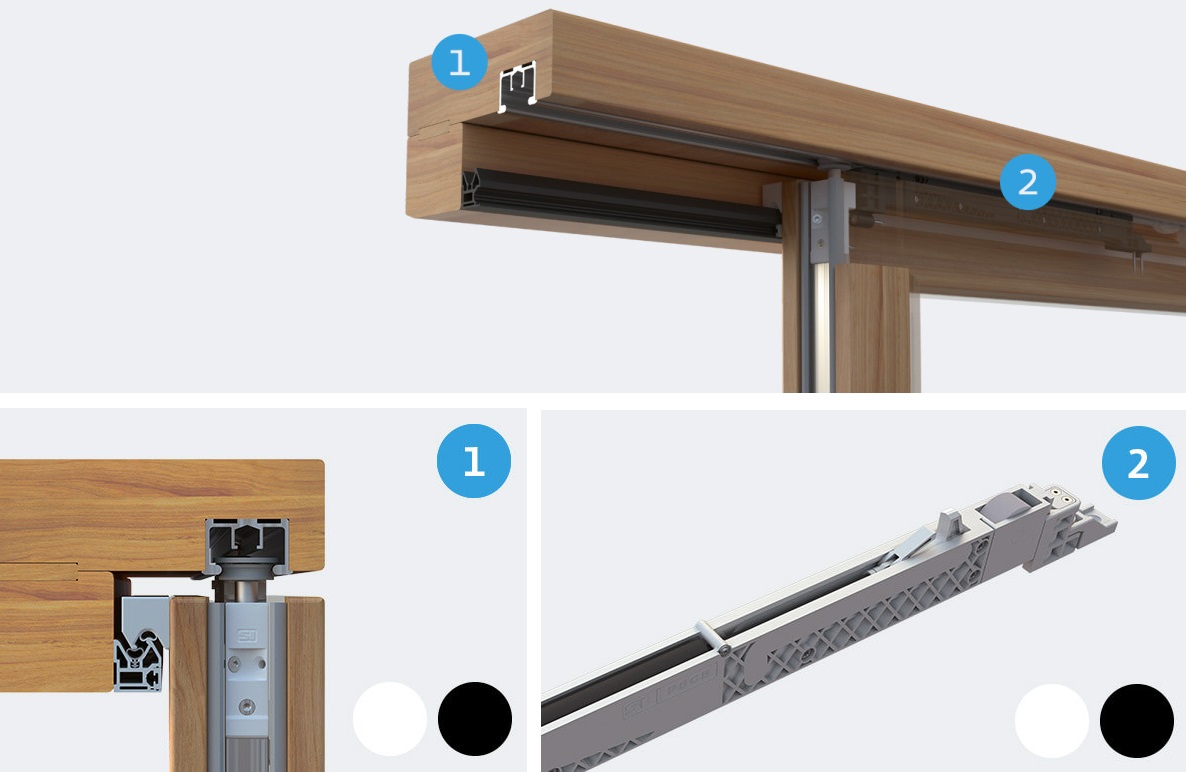

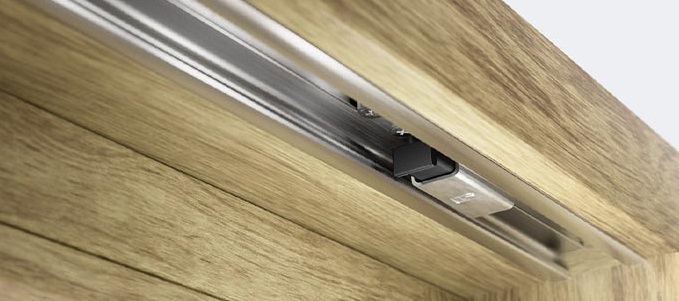

SOFT CLOSE
Soft, controlled and secure closing

• consists of a guide track and a damper
• invisibly integrated into the sash
• brakes the sash gently just before the end position and pulls it shut automatically thus minimising any risk of injury or material damage
• automatically adjusts to each sash position and tolerances
• maintenance-free due to self-lubricating mechanism
• also available in black to suit dark profiles



New damper

• almost fully invisible in guide rail
• elegant, discreet design
• easy to clean
• suitable for all PORTAL HS SC guide rails

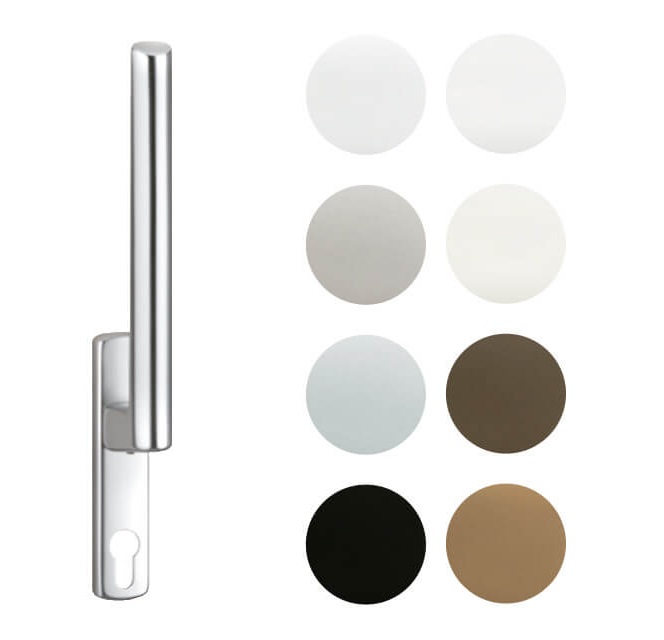

Handles

• noiseless and stable movement
• lasting functional security
• ergonomic, modern design
• wide range of colours: white, cream, brown, black, medium dark bronze tone, silver tone, light matt titan tone, stainless steel tone (F9)
• large choice of variants - lockable and non-lockable handles in various combinations
• perfectly coordinated with the hardware and the weight of the sash

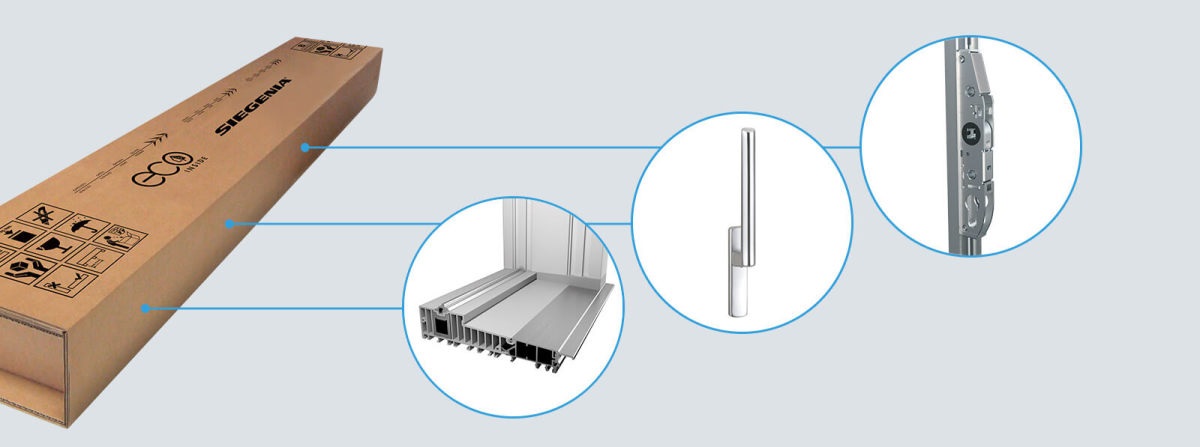

COMFORT UNIT
Optimum, custom-adapted set with ECO PASS threshold

• complete package ready for assembly on the spot: trimmed, pre-drilled and pre-assembled
• ECO PASS threshold - all components including sealing rails are pre-drilled and pre-assembled
• bogie wheels, guiding rail and handles are all cut to size, pre-drilled and pre-assembled as much as possible
• safer and easier ordering and configuration that does not require manual adjustments
• no waste and scrap cuttings, no production risks

CATALOGUES and INSTRUCTIONS

PORTAL system brochure

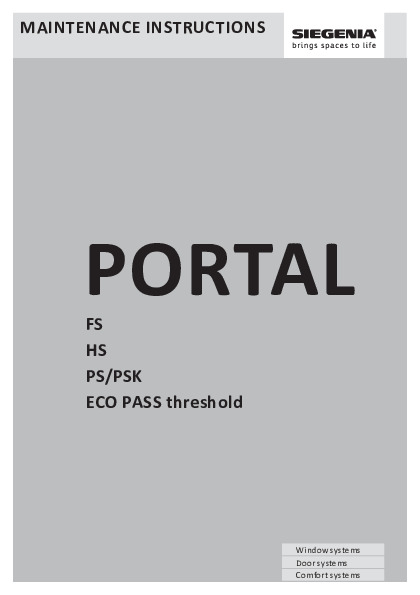

PORTAL / ECO PASS maintenance instructions

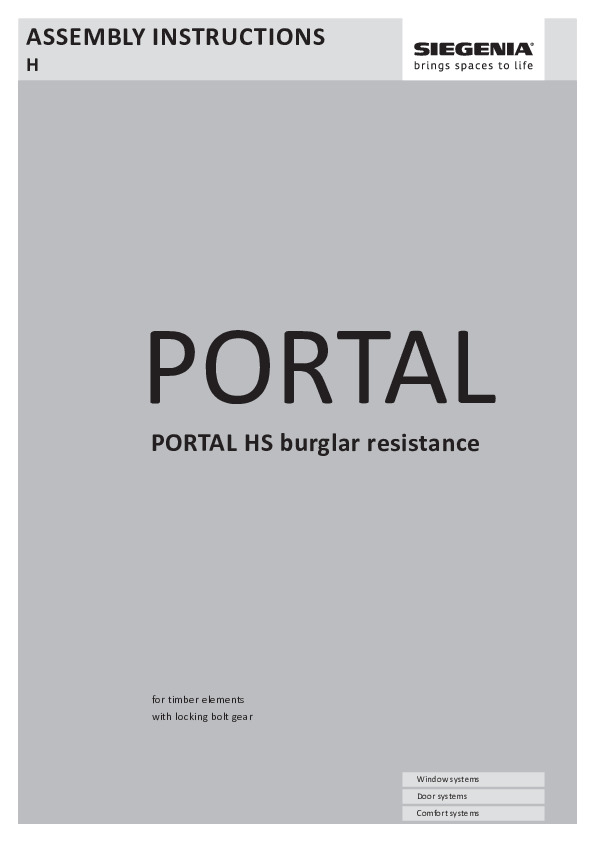

PORTAL HS burglar resistance

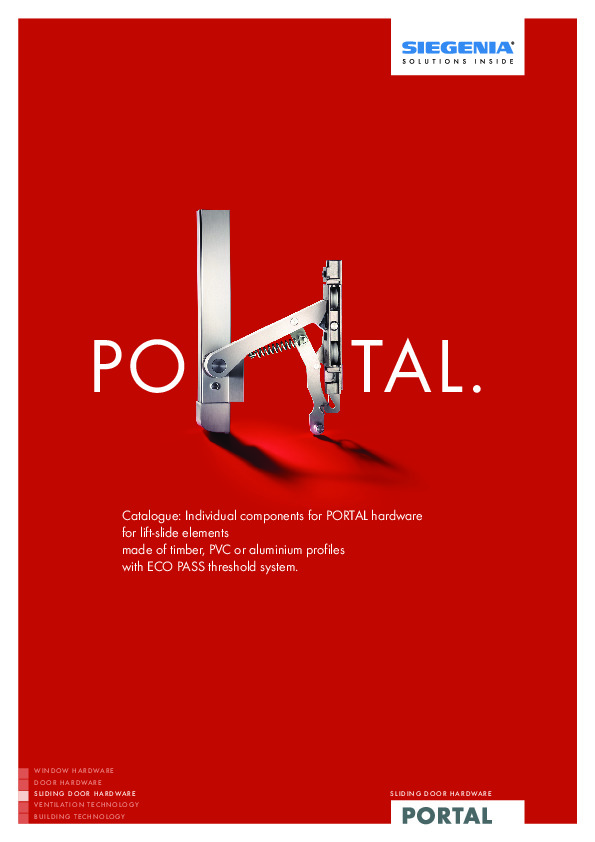

PORTAL - hardware catalogue

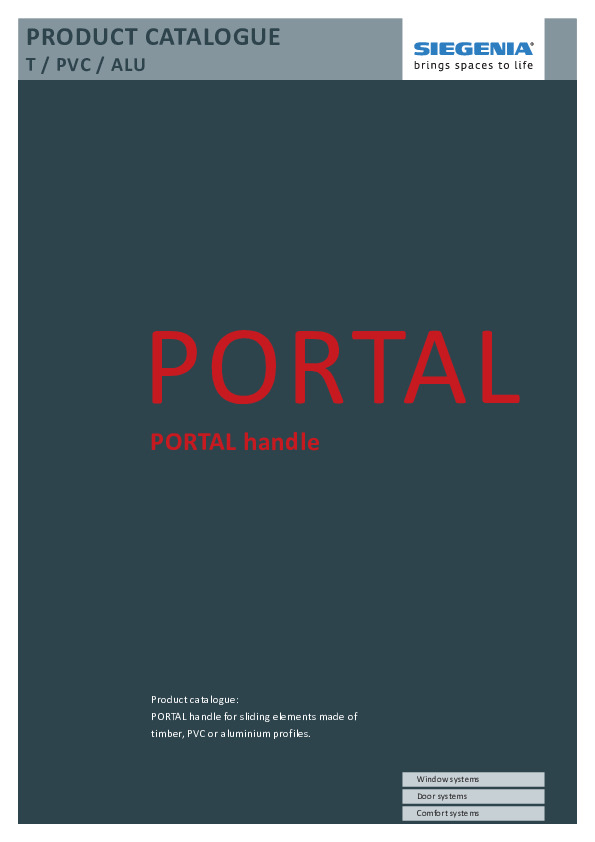

PORTAL handle catalogue
