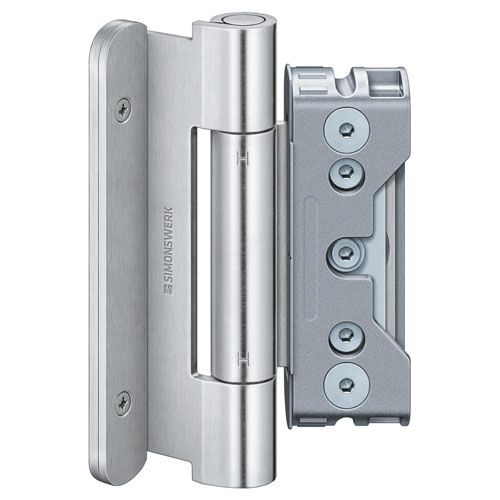

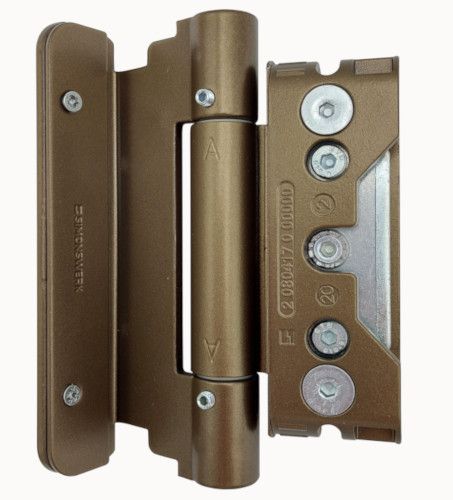

Set of adjustable hinges for exterior doors with acoustic seal BAKA Protect 4030 3D FD MSTS

Set of adjustable hinges for exterior doors with acoustic seal BAKA Protect 4030 3D FD MSTS
Manufacturer - SIMONSWERK (Germany)

• • • suitable for doors with acoustic seal
    • suitable for fire safety doors, doors with high level of acoustic insulation and doors with anti-intruder security
    • efficient and economic fitting, using the well-developed templates
    • suitable also for doors with thin overlap
    • integrated security pin (MSTS) for doors opening outwards
    • high-quality maintenance-free bearings
    • 3-dimensional adjustability: side (+/- 3 mm), height (+/- 3 mm), depth (+/- 3 mm)
    • threaded frame pin
    • concealed receiver in door leaf

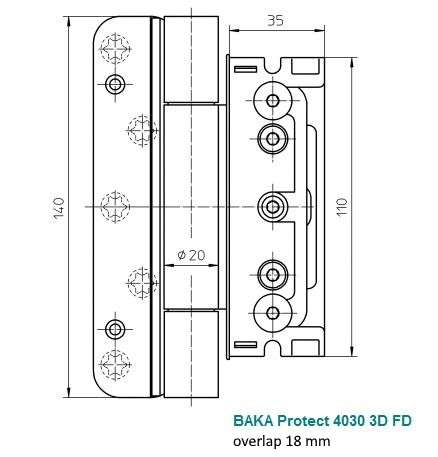

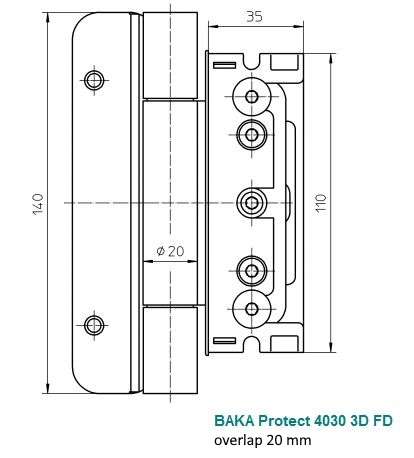

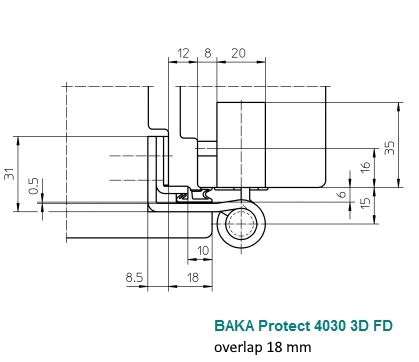

    • knuckle length: 140 mm, diameter: 20 mm
    • milling diameter: 20 mm

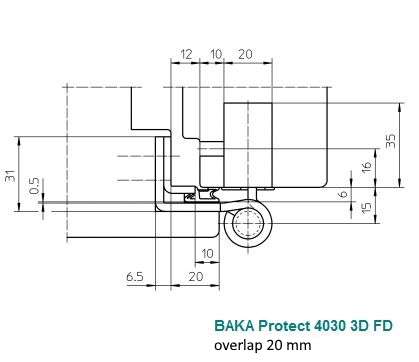

    • overlap width: 18 mm, 20 mm
    • available in sets of 3 hinges: 1 height-adjustable hinge, 2 depth-adjustable hinges
    • max load capacity:

• • • • 160 kg with 2 hinges (leaf 1000 x 2000 mm; distance between 1st and 2nd hinge reference line: 1435 mm)
      • if using 3 hinges (standard set) or a 4th hinge, the total load capacity does not increase but the load-bearing endurance improves for wide doors and doors fitted with door closers, automated systems and stoppers

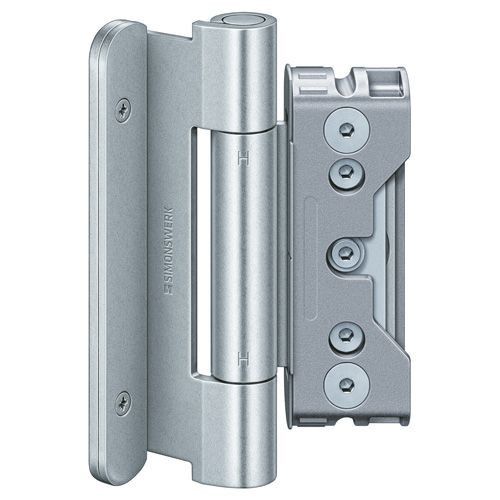

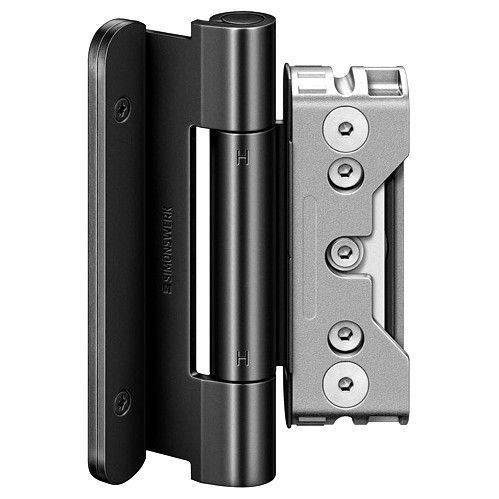

      • if necessary, a 4th hinge can be ordered separately

• • • material:

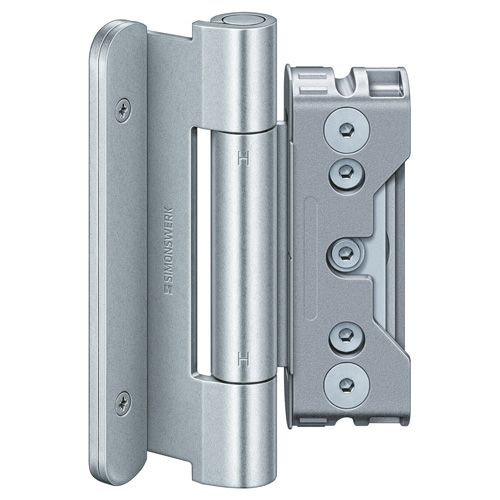

      • steel, light galvanised
      • stainless steel
      • bronze tone

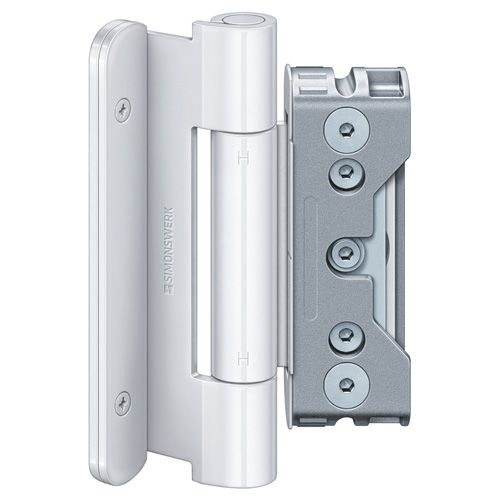

      • white
      • F1 tone

Classification code according to DIN EN 1935
2 7 3 1 1 ^*1 0 10^*2
1 depending on surface finish
2 test cycles in continuous operation with leaf of 120 kg
