Sanitary booth hardware system SM PQ with panel profiles

Product code
SM-PQ
JNF View catalogue of manufacturer
Sanitary booth hardware system SM PQ | UKSELINGIDPLUSS.ee
From €113.24
  • The basic system configurator includes panel profiles, panel supports and hinges.
  • Other system components can be selected in the "Additional products" section of the e-shop.
  • Detailed information on system assembly can be found in the "DESCRIPTION" section.
Reset selection
SM.101 U-shape profile for 13 mm panels, 20x15.5 mm, length 3050 mm, stainless steel satin   €80.53
Code: SB00026216
Art. Nr.: SM101
Out of stock. Estimated delivery time: 6 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.
SM.070 Square base for panel 13 mm, adjustable height 120-150 mm, stainless steel satin   €25.57
Code: SB00025795
Art. Nr.: SM070
Out of stock. Estimated delivery time: 6 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.
HPL hinge SM.005/SM.006   €7.14
Can be ordered in full packages of pcs.

Price as configured €113.24

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

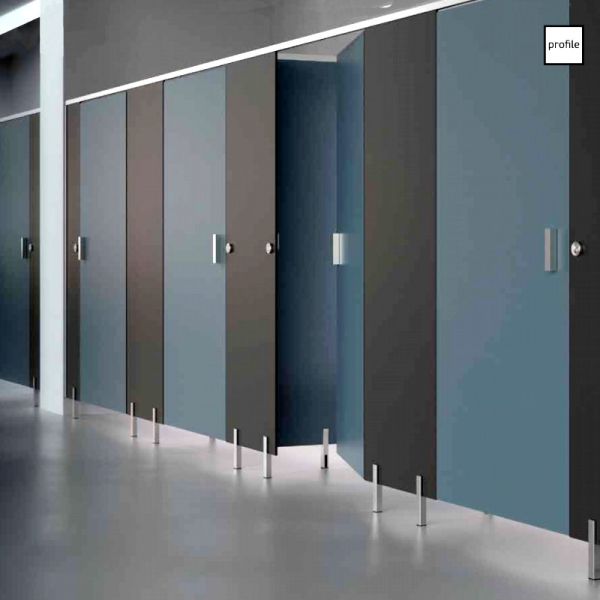

Sanitary booth hardware system SM PQ

Manufacturer - JNF (Portugal)

  • modular stainless steel hardware system for construction of sanitary booth
  • solution with panel profile system that ensure fastening between panels, to the wall and to the ceiling
  • quick and efficient installation
  • profile system allows a visual line that connects the whole system
  • suitable for WC, changing, fitting, and other indoor cabins with hinged doors
  • icompatible with high-pressure laminate (HPL) panels with a thickness of  13 mm
  • U-shaped panel profile 20x20 mm, thickness: 1.0 mm
  • square base for panels witth concealed height adjusting system and hidden fixings
  • hinges for HPL panels suitable for medium and heavy loads: standard hinge or self-closing hinge with a spring and adjustable closing force
  • door latches and various shaped handles are available
  • material: stainless steel EN 1.4301 (AISI 304) satin

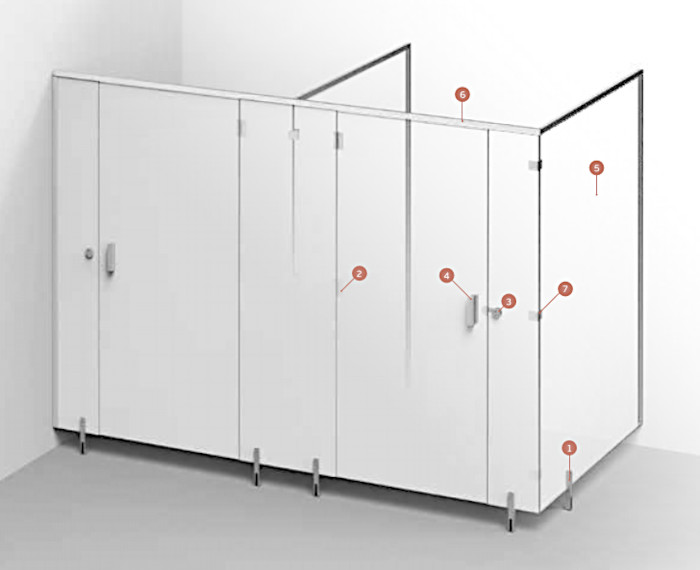

System architecture

  1. Feet
  2. Hinges
  3. Latches
  4. Handles
  5. Hooks
  6. Profile
  7. Panel holders

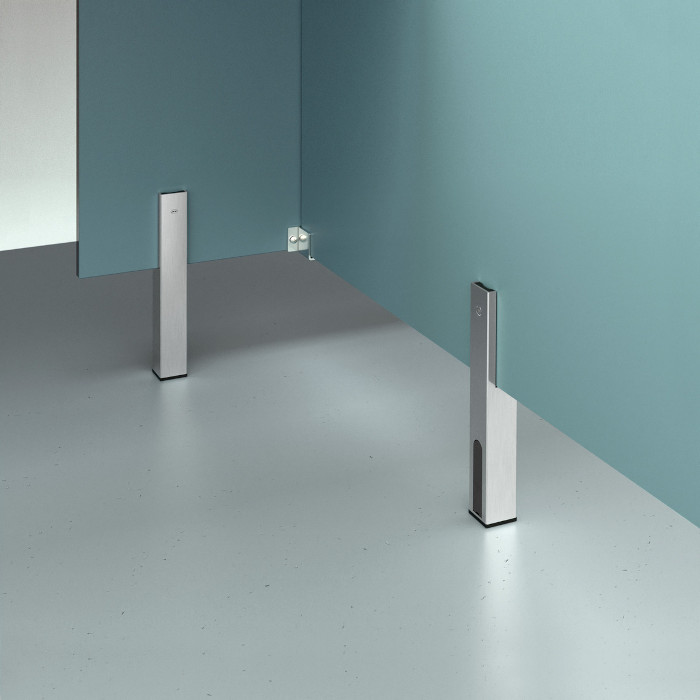

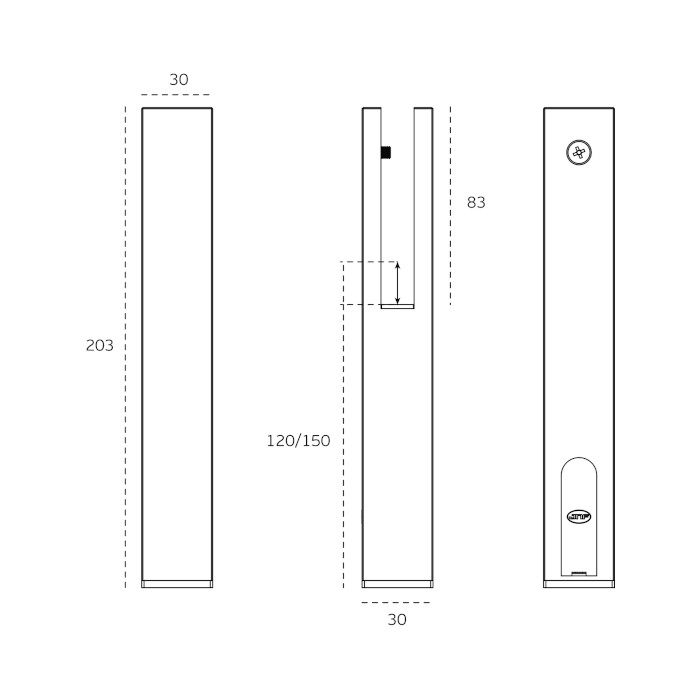

1. FEET

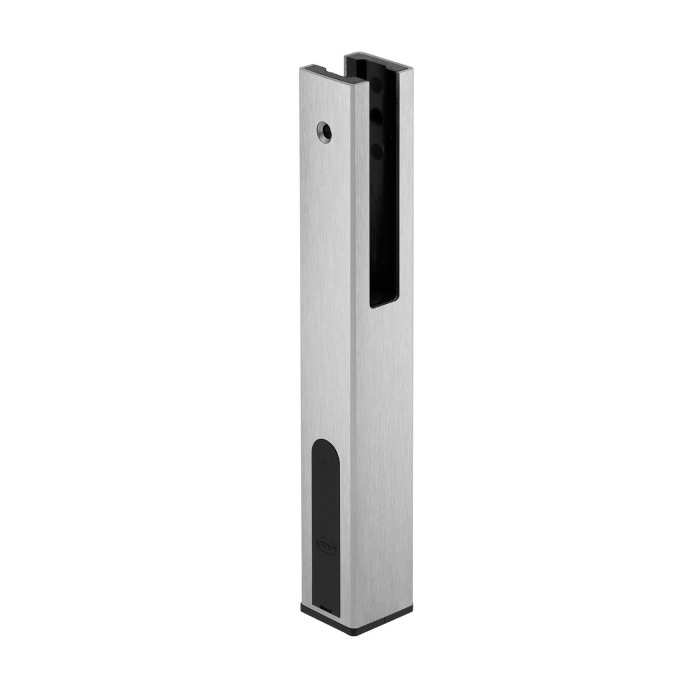

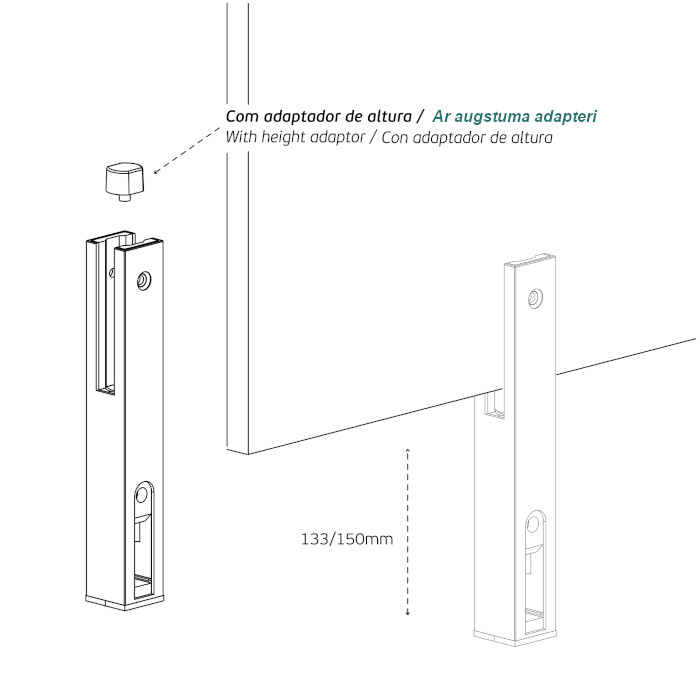

  • floor-mounted panel supports with a square section SM.070 for panels with a thickness 13 mm
  • adjustable height: 120 - 150 mm
  • hidden fixings and concealed height adjusting system
  • the support base made incomposite resistant to chemical agents
  • the height is adjustable even with the base already fixed on the floor and the panel on the support

2. HINGES

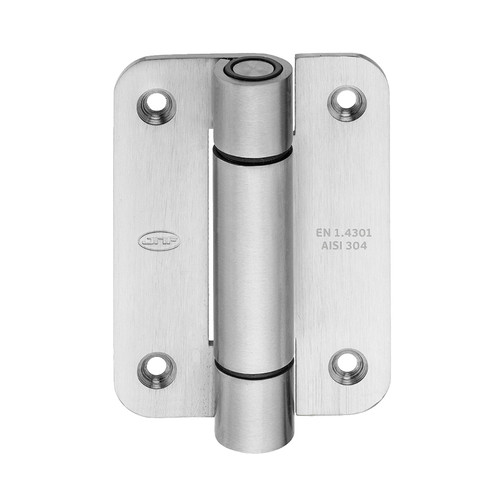

  • SM.006.B - HPL hinge for heavy duty use with high resistance bearings

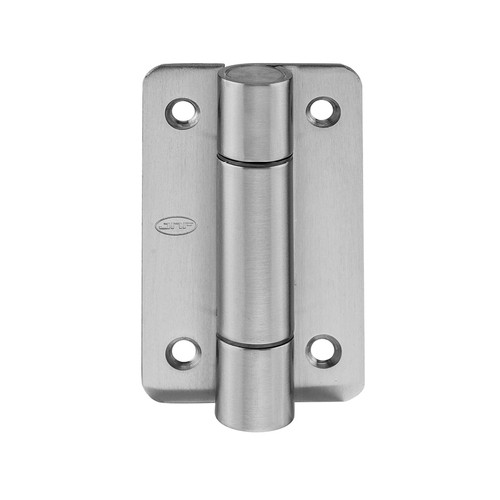

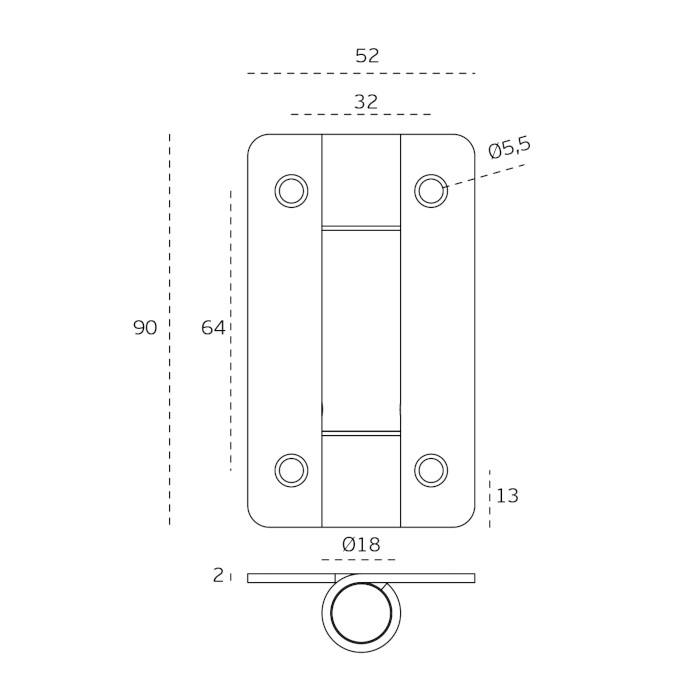

  • SM.005.B - HPL hinge for medium use, visible holes
  • SM.005.C - Self-closing HPL hinge for medium use, with spring, visible holes

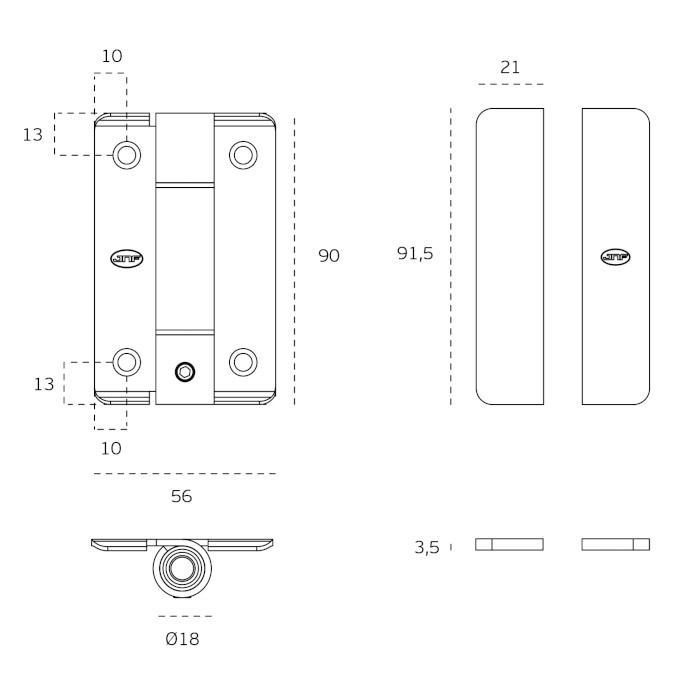

  • SM.005.E - Self-closing HPL hinge for medium use, with spring, concealed fixing (covers included)
  • SM.005.F - HPL hinge for medium use, with spring, concealed fixing (covers included)
SM.006.B
SM.005.B
SM.005.C
SM.005.E/F

3. LATCHES

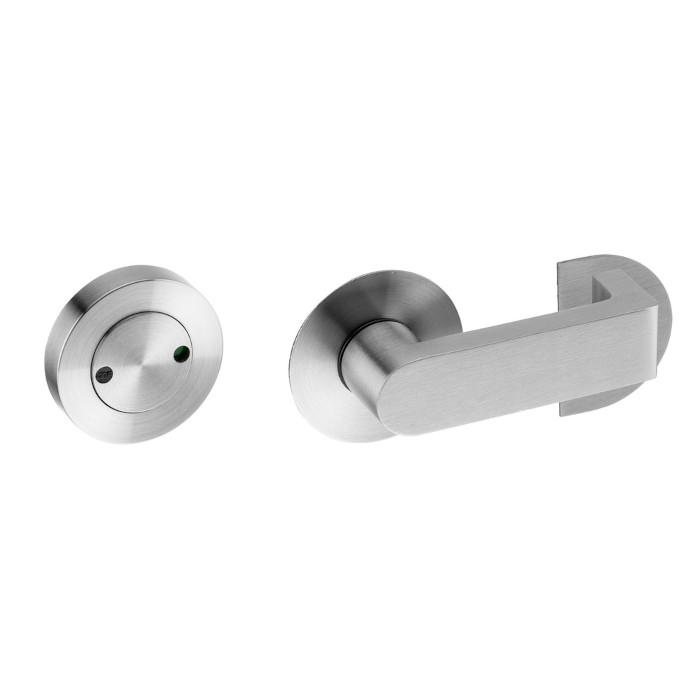

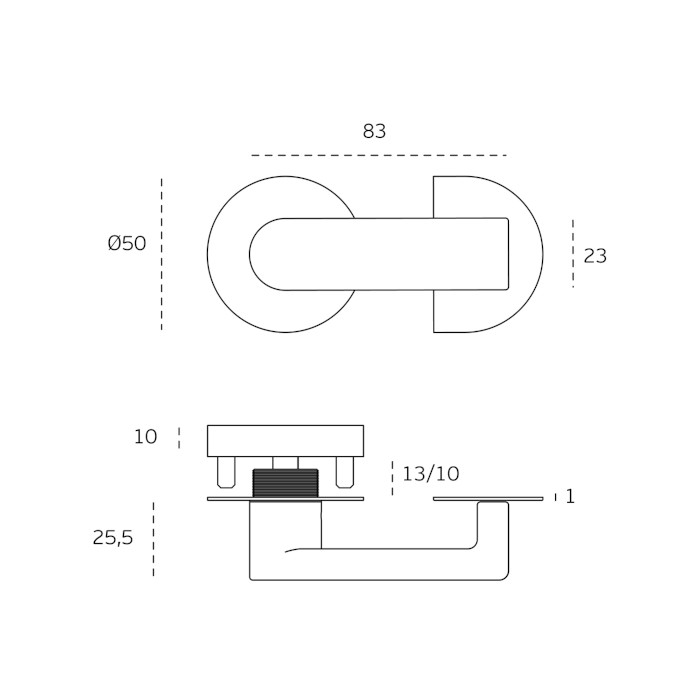

  • SM.031 Bathroom latch with indicator. Internal latch with handle that simultaneously serves as knob..

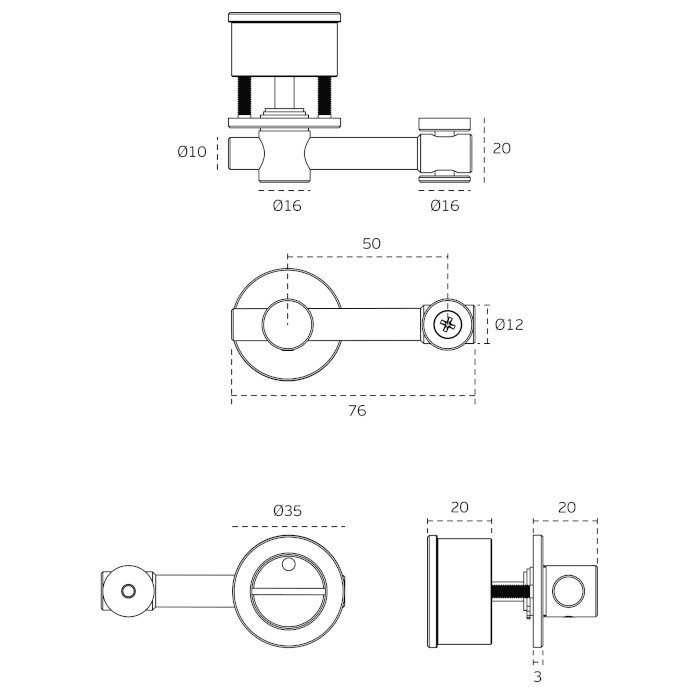

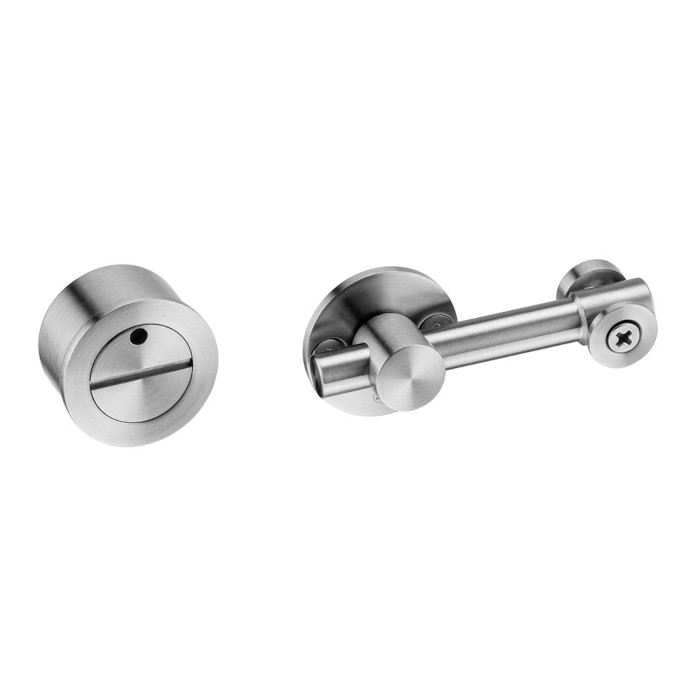

  • SM.060 Bathroom latch with indicator.

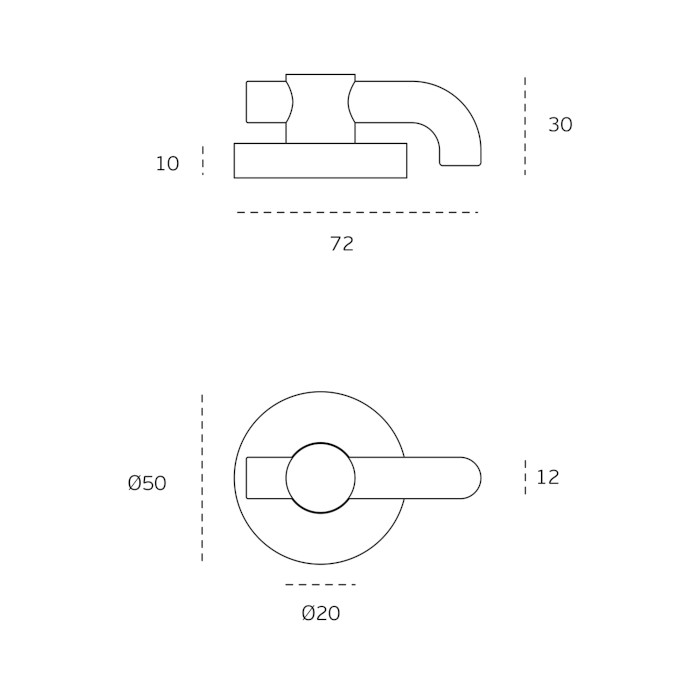

  • SM.030 Bathroom latch with colour indicator. Emergency open from the outside with coin.
  • SM.029 Bathroom latch with colour indicator. Emergency open from the outside with triangular key.
  • SM.035 Sliding latch/knob
SM.031
SM.060
SM.029 / SM.030
SM.035

4. HANDLES

Various shaped double door knobs with antivandalism fixing.

5. HOOK / DOOR STOP

SM.008 Bag or clothing hanger with a door stop function. Concealed fastening.
IN.75.051.D
IN.75.050.D

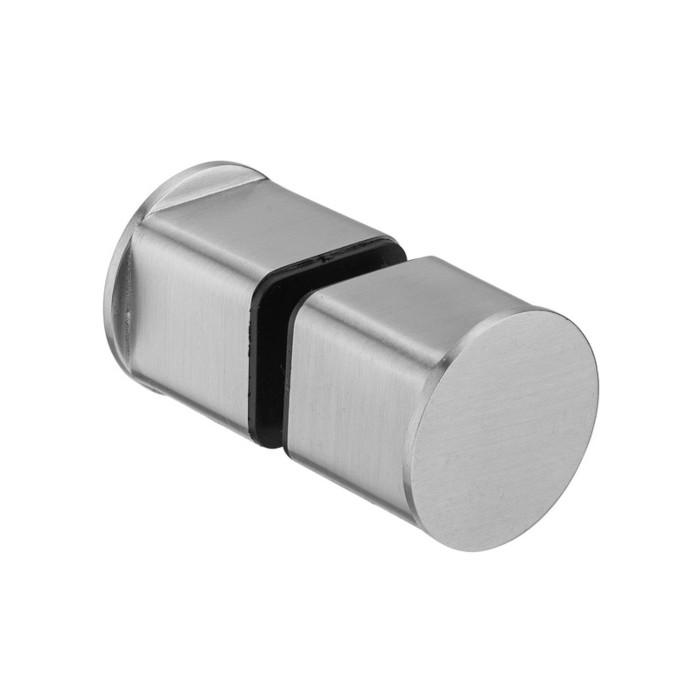

IN.75.042
IN.75.041
IN.75.040
SM.008

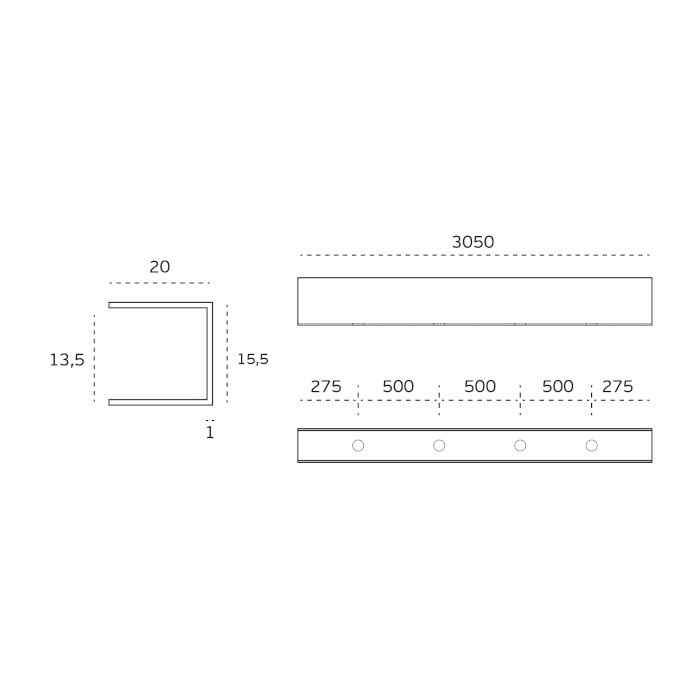

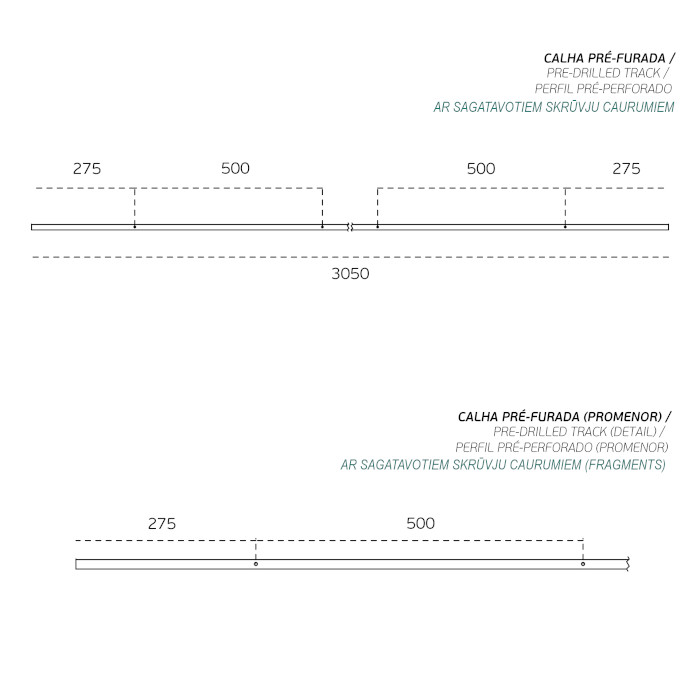

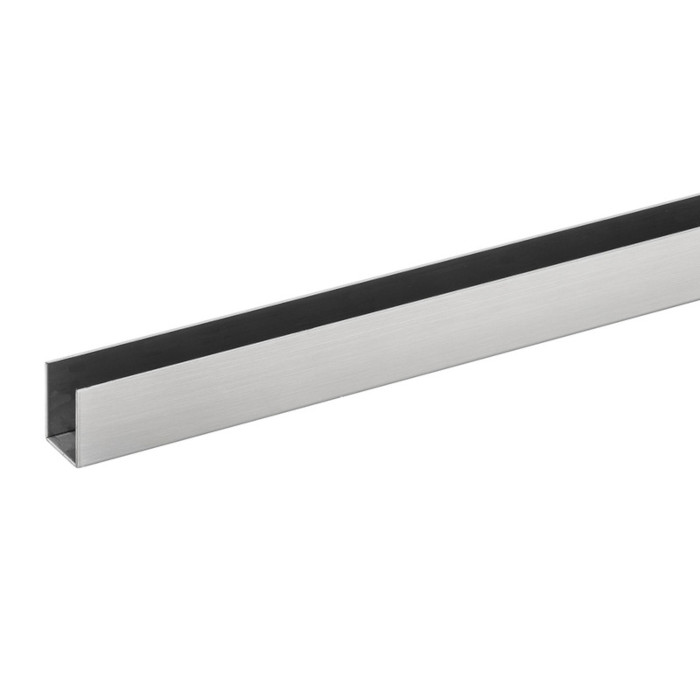

6. PANEL PROFILE SM.101

  • U-shaped profile 20 x 15.5 mm
  • length: 3050 mm
  • thickness: 1.0 mm
  • pre-drilled track

7. PANEL HOLDERS

SM.065
SM.004
SM.024
SM.034
SM.014
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. SM.101 U-shape profile for 13 mm panels, 20x15.5 mm, length 3050 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.101 U-shape profile for 13 mm panels, 20x15.5 mm, length 3050 mm, stainless steel satin
    Code: SB00026216
    Art. Nr.: SM101
    Price:
    From €80.53
    In Stock: 0 pc.
    Visma Quote
  2. SM.070 Square base for panel 13 mm, adjustable height 120-150 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.070 Square base for panel 13 mm, adjustable height 120-150 mm, stainless steel satin
    Code: SB00025795
    Art. Nr.: SM070
    Price:
    From €25.57
    In Stock: 0 pc.
    Visma Quote

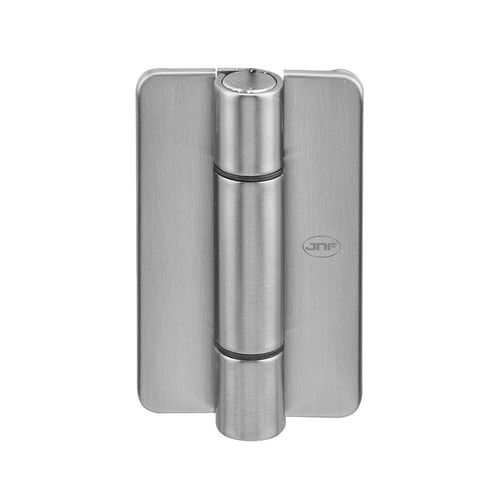

  3. SM.005.E Self-closing hinge with spring for medium use, 90x56 mm, hidden holes, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.005.E Self-closing hinge with spring for medium use, 90x56 mm, hidden holes, stainless steel satin
    Code: SB00026241
    Art. Nr.: SM005E
    Price:
    From €11.04
    In Stock: 0 pc.
    Visma Quote
  4. SM.005.F Hinge without spring for medium use, 90x56 mm, fidden holes, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.005.F Hinge without spring for medium use, 90x56 mm, fidden holes, stainless steel satin
    Code: SB00026240
    Art. Nr.: SM005F
    Price:
    From €10.79
    In Stock: 0 pc.
    Visma Quote

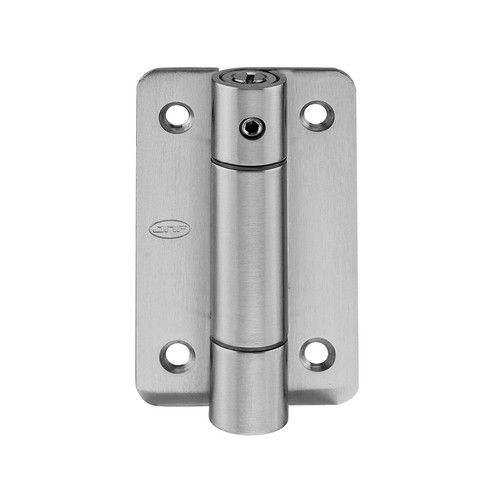

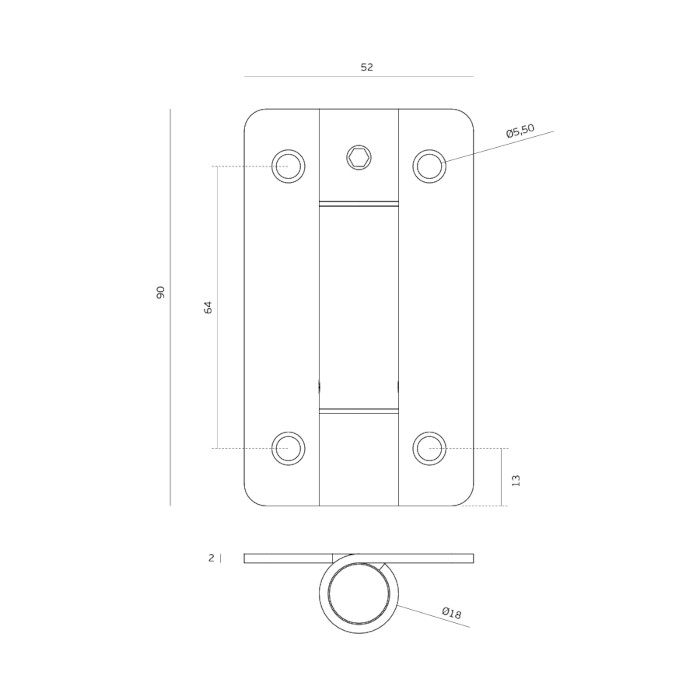

  5. SM.005.C Self-closing hinge with spring, visible holes, 90x52 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.005.C Self-closing hinge with spring, visible holes, 90x52 mm, stainless steel satin
    Code: SB00025080
    Art. Nr.: SM005C
    Price:
    From €10.91
    In Stock: 0 pc.
    Visma Quote
  6. SM.005.B Hinge without spring for medium use, visible holes, 90x52 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.005.B Hinge without spring for medium use, visible holes, 90x52 mm, stainless steel satin
    Code: SB00025796
    Art. Nr.: SM005B
    Price:
    From €7.14
    In Stock: 0 pc.
    Visma Quote

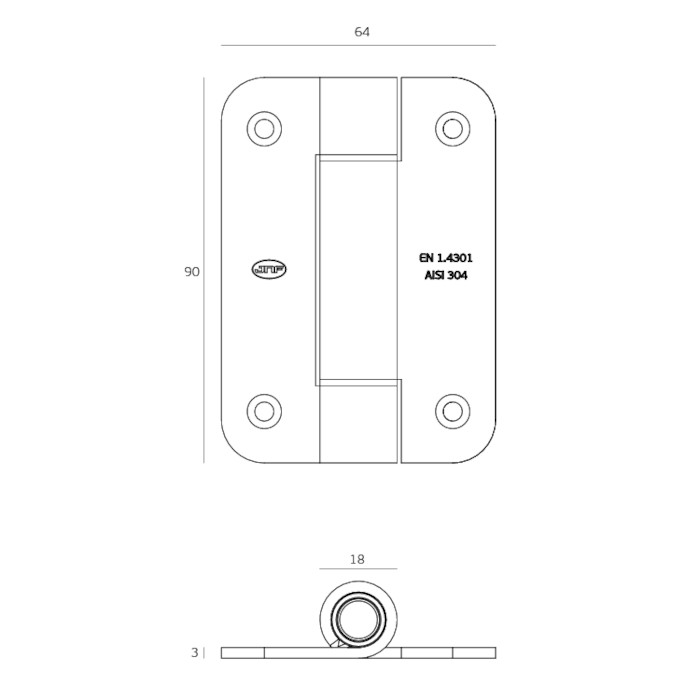

  7. SM.006.B Hinge without spring for high use, visible holes, 90x65 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.006.B Hinge without spring for high use, visible holes, 90x65 mm, stainless steel satin
    Code: SB00025800
    Art. Nr.: SM006B
    Price:
    From €11.85
    In Stock: 0 pc.
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity

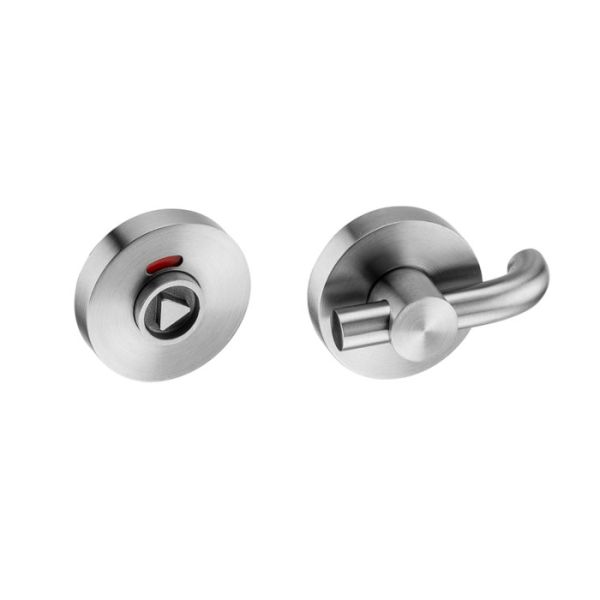

  1. SM.029 Bathroom latch with indicator, emergency opening from the outside with triangular key, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.029 Bathroom latch with indicator, emergency opening from the outside with triangular key, stainless steel satin
    Code: SB00026229
    Art. Nr.: SM029
    Price:
    From €29.44
    In Stock: 0 pc.
    Visma Quote
  2. SM.030 WC cubicle latch with color indicator, emergency opening with coin, stainless steel | UKSELINGIDPLUSS.ee
    SM.030 WC cubicle latch with color indicator, emergency opening with coin, stainless steel
    Code: SB00023691
    Art. Nr.: SM030
    NAV PASŪTĀMS! Pieejams tikai noliktavā esošais daudzums.
    Price:
    From €30.73
    In Stock: 4 pc.

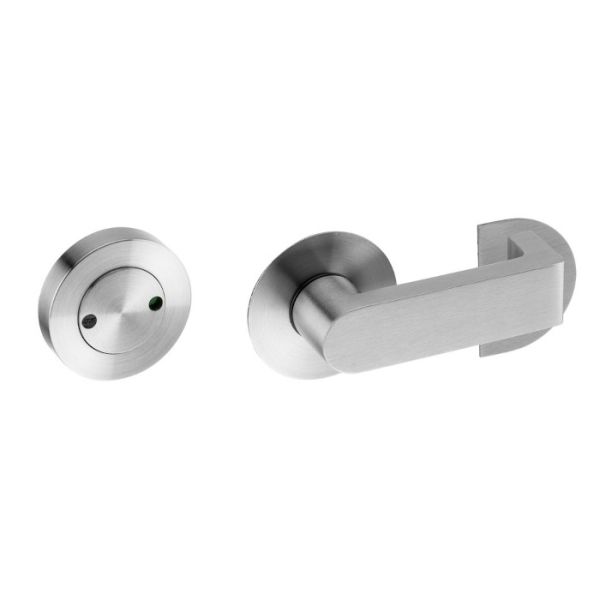

  3. SM.031 Internal latch/handle with indicator, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.031 Internal latch/handle with indicator, stainless steel satin
    Code: SB00014331
    Art. Nr.: SM031
    Price:
    From €40.08
    In Stock: 0 pc.
    Visma Quote
  4. SM.060 Bathroom latch with indicator, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.060 Bathroom latch with indicator, stainless steel satin
    Code: SB00026221
    Art. Nr.: SM060
    Price:
    From €32.12
    In Stock: 0 pc.
    Visma Quote

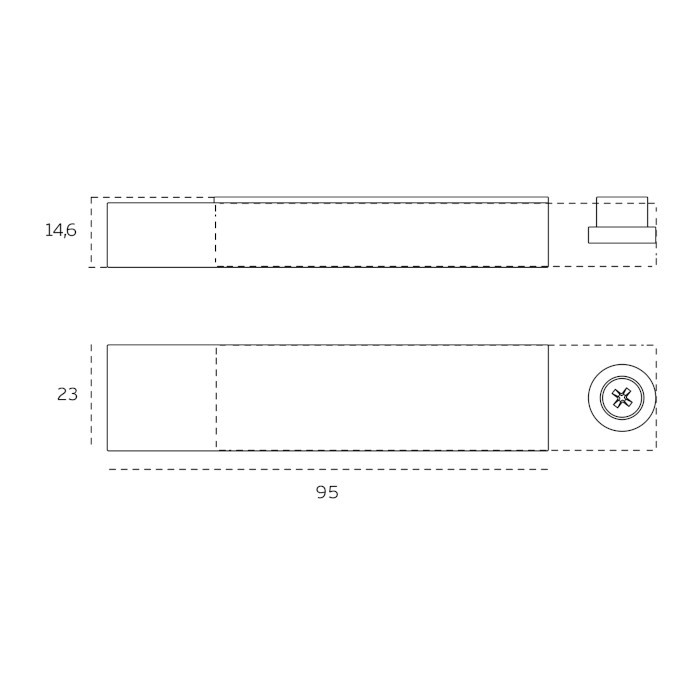

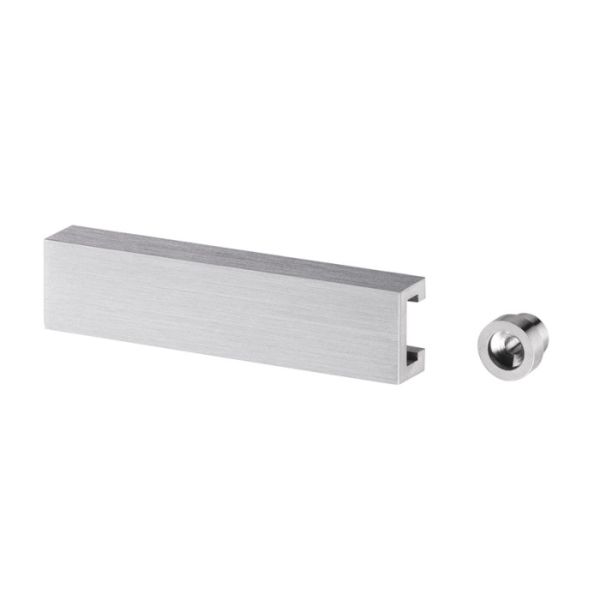

  5. SM.035 Sliding bathroom latch, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.035 Sliding bathroom latch, stainless steel satin
    Code: SB00026225
    Art. Nr.: SM035
    Price:
    From €29.44
    In Stock: 0 pc.
    Visma Quote

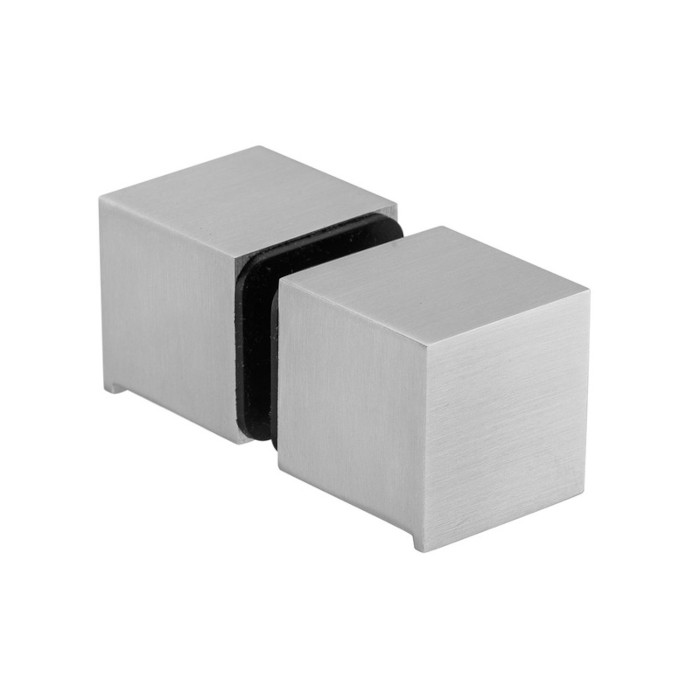

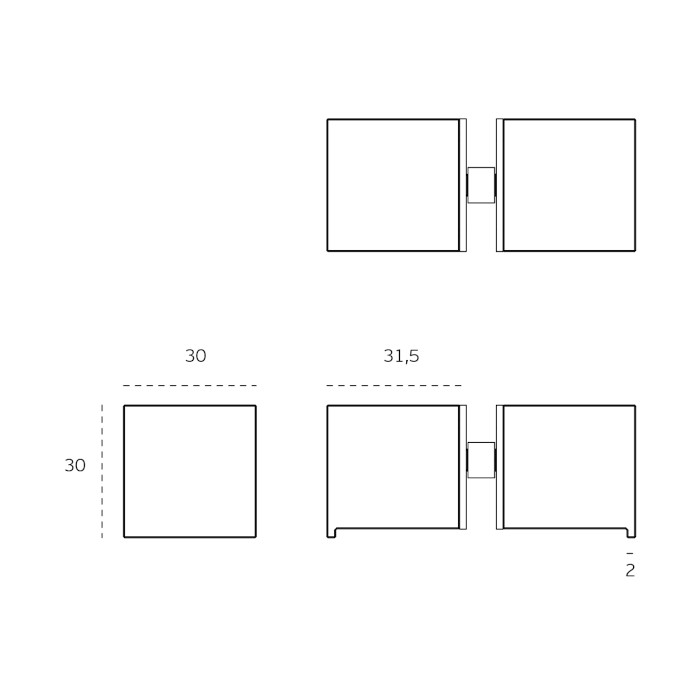

  6. IN.75.040 Double door knob 30x30 mm, with antivandalism fixing, stainless steel satin | UKSELINGIDPLUSS.ee
    IN.75.040 Double door knob 30x30 mm, with antivandalism fixing, stainless steel satin
    Code: SB00026270
    Art. Nr.: IN75040
    Price:
    From €25.10
    In Stock: 0 pair
    Visma Quote

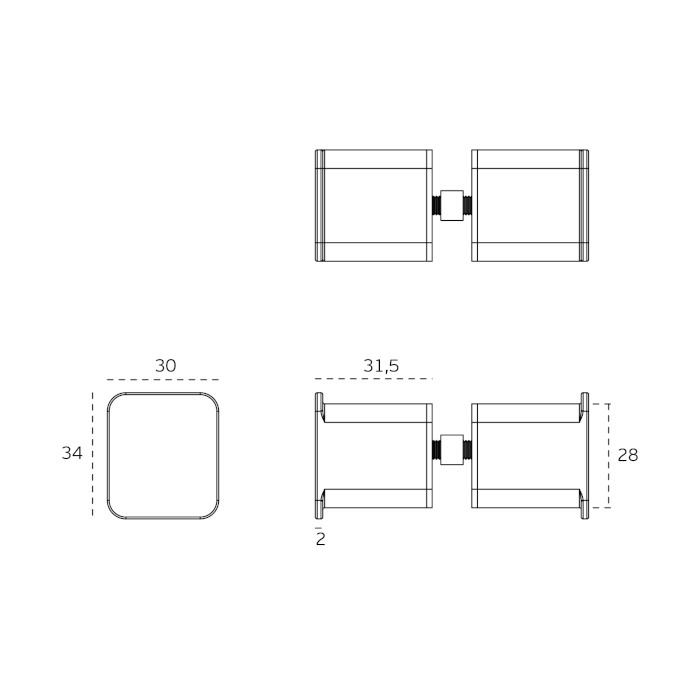

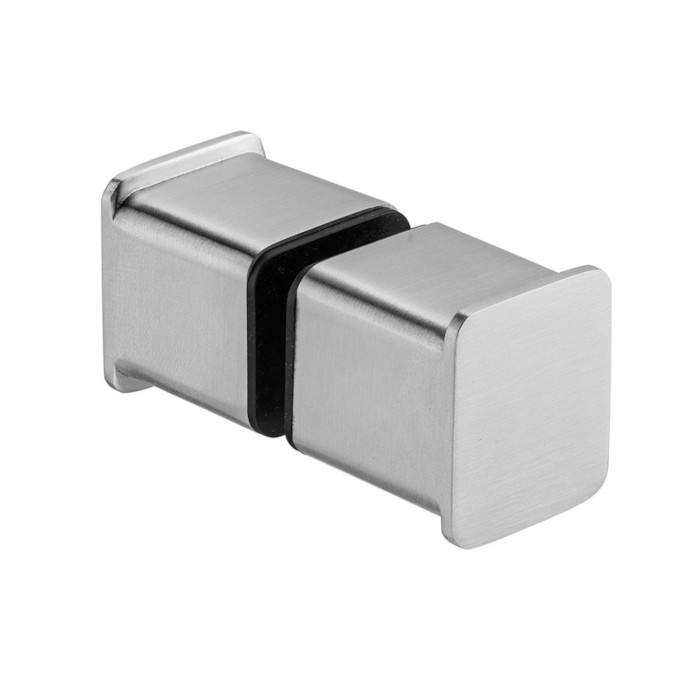

  7. IN.75.041 Double door knob 30x34 mm, with antivandalism fixing, stainless steel satin | UKSELINGIDPLUSS.ee
    IN.75.041 Double door knob 30x34 mm, with antivandalism fixing, stainless steel satin
    Code: SB00026269
    Art. Nr.: IN75041
    Price:
    From €25.10
    In Stock: 0 pair
    Visma Quote

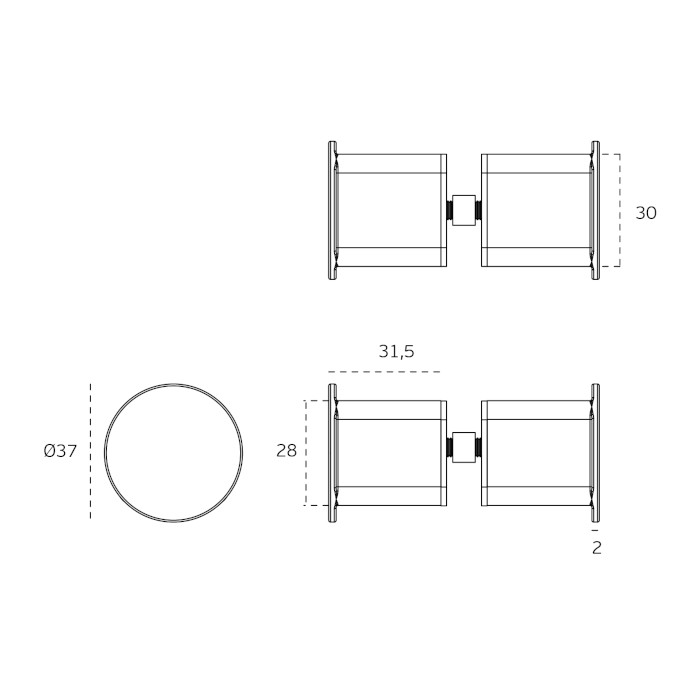

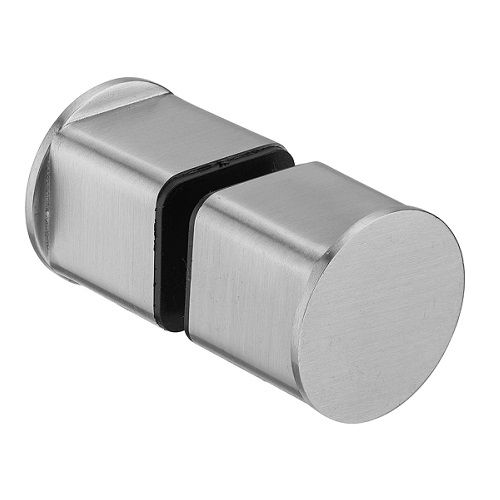

  8. IN.75.042 Double door knob Ø37 mm, with antivandalism fixing, stainless steel satin | UKSELINGIDPLUSS.ee
    IN.75.042 Double door knob Ø37 mm, with antivandalism fixing, stainless steel satin
    Code: SB00021378
    Art. Nr.: IN75042
    Price:
    From €25.10
    In Stock: 0 pair
    Visma Quote
  9. IN.75.050.D Double door knob 150x32 mm, with antivandalism fixing, stainless steel satin | UKSELINGIDPLUSS.ee
    IN.75.050.D Double door knob 150x32 mm, with antivandalism fixing, stainless steel satin
    Code: SB00026267
    Art. Nr.: IN75050D
    Price:
    From €75.24
    In Stock: 0 pair
    Visma Quote
  10. IN.75.051.D Double door knob 150x32 mm, with antivandalism fixing, stainless steel satin | UKSELINGIDPLUSS.ee
    IN.75.051.D Double door knob 150x32 mm, with antivandalism fixing, stainless steel satin
    Code: SB00026266
    Art. Nr.: IN75051D
    Price:
    From €75.24
    In Stock: 0 pair
    Visma Quote
  11. SM.008 Hook/stop with concealed fixing on wall, 76mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.008 Hook/stop with concealed fixing on wall, 76mm, stainless steel satin
    Code: SB00026239
    Art. Nr.: SM008
    Price:
    From €9.50
    In Stock: 0 pc.
    Visma Quote
  12. SM.004 Panel holder 57x50 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.004 Panel holder 57x50 mm, stainless steel satin
    Code: SB00026242
    Art. Nr.: SM004
    Price:
    From €2.83
    In Stock: 0 pc.
    Visma Quote
  13. SM.014 L-shape holder for 13mm panels, 54x50 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.014 L-shape holder for 13mm panels, 54x50 mm, stainless steel satin
    Code: SB00026232
    Art. Nr.: SM014
    Price:
    From €3.42
    In Stock: 0 pc.
    Visma Quote
  14. SM.024 Holder for 13 mm panels, 50x50 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.024 Holder for 13 mm panels, 50x50 mm, stainless steel satin
    Code: SB00026230
    Art. Nr.: SM024
    Price:
    From €2.70
    In Stock: 0 pc.
    Visma Quote
  15. SM.024 T-shape holder for 13 mm panels, 68x50x55 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.024 T-shape holder for 13 mm panels, 68x50x55 mm, stainless steel satin
    Code: SB00026226
    Art. Nr.: SM034
    Price:
    From €3.77
    In Stock: 0 pc.
    Visma Quote
  16. SM.065 Side holder for 13 mm panels, 30x32 mm, stainless steel satin | UKSELINGIDPLUSS.ee
    SM.065 Side holder for 13 mm panels, 30x32 mm, stainless steel satin
    Code: SB00025079
    Art. Nr.: SM065
    Price:
    From €12.90
    In Stock: 0 pc.
    Visma Quote
Manufacturer JNF
door type for hinged doors
profile shape U-shape
material stainless steel
leaf material HPL laminate
hinge shape rounded
hinge type standard or self-closing
purpose for sanitary booths
Panel thickness 13 mm
feet shape angular
