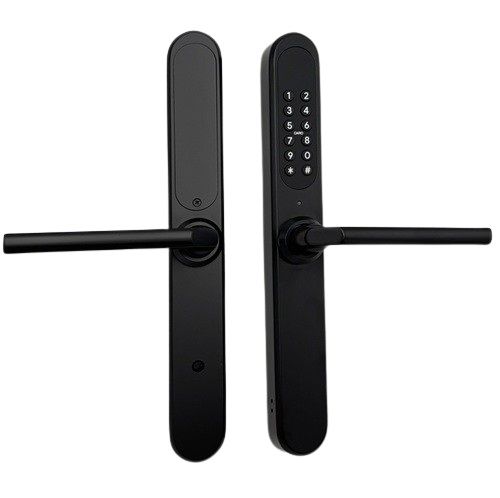

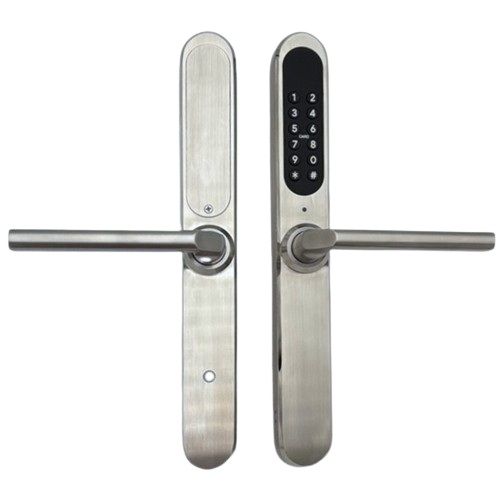

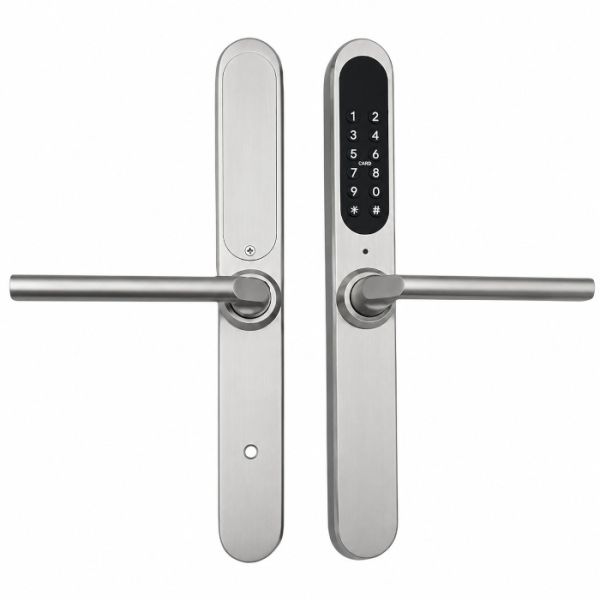

Smart door handle S35A IP55 Bluetooth for various standard locks

Smart door handle S35A IP55 Bluetooth

• handle set with remote access control for wooden and metal doors
• perfect solution for hotels, Airbnb-type accommodations, offices, as well as private homes
• works with batteries, no need for cable connections
• recommended indoor or roofed outdoor use
• controlled via the TTlock mobile app using Bluetooth, magnetic cards, PIN codes, or remote control
• suitable for locks of various standards (DIN, Italian, etc.)

Benefits

• multiple door locks can be controlled with one smartphone
• temporary password creation with different scripts
• multiple levels of administrator functions, easier administration
• compact, elegant design
• FPC finger scanner for added security
• emergency unlocking via USB charger
• emergency unlocking with a special key
• unlimited number of e-keys
• handle's long-term durability: 10 years or 300,000 open/close cycles
• high-quality, water-resistant stainless steel casing

Technical data

• backplates without keyhole, suitable for locks with different centre distances
• set includes 3 locking fobs
• max number of magnetic RFID cards: 200
• max number of PIN codes: 150
• e-keys: unlimited
• battery life in open/close cycles: 3000-4000 or 8-10 months
• IP rating: IP55
• dimensions: 310 x 39 mm
• thickness: 23 mm
• handle length from inner edge of backplate: 140 mm
• distance from backplate surface to handle surface: 58.5 mm
• suitable for door thickness: 35-90 mm
• material: stainless steel

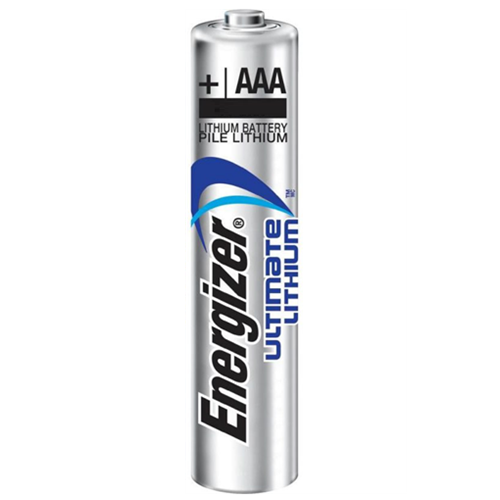

• batteries 4 x AAA 6V (not included)

ATTENTION

To ensure the reliable and long-term performance of the access control system and any electronics integrated into the door handles, appropriate protection against adverse environmental conditions is essential. Exposure to rain, snow, direct sunlight, and extreme temperatures may negatively impact electronic components and lead to operational failures. It is recommended that doors be installed in a recessed position or equipped with a protective canopy to minimize exposure to precipitation, intense solar radiation, and other atmospheric influences. Inadequate protection against environmental factors may result in system damage and will void the warranty. During exterior and interior finishing or construction works, the door handle and its electronic components must be carefully protected against dust, dirt, and ingress of construction materials onto surfaces or into the mechanism.
