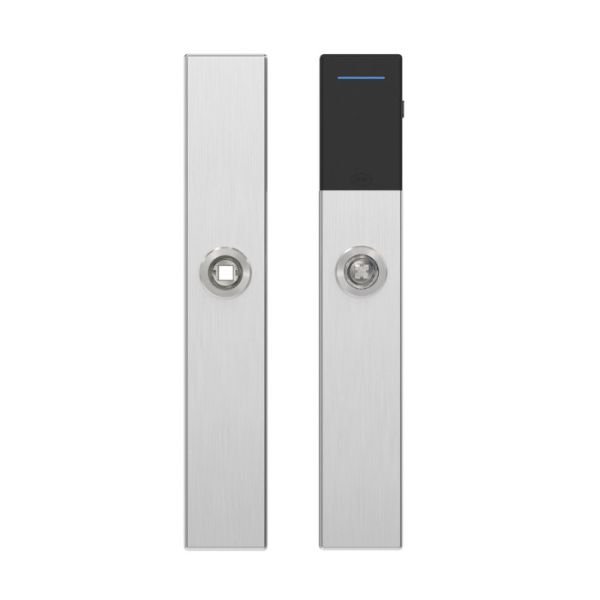

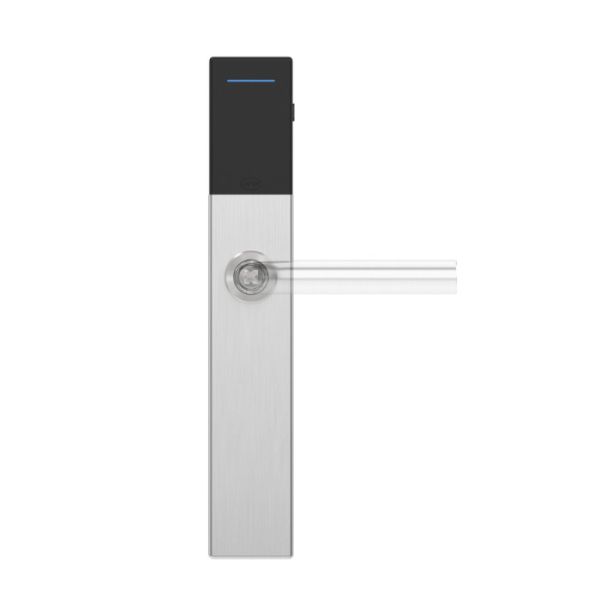

VOYAGER CITY smart access control backplates

Smart access control backplates VOYAGER CITY

Manufacturer - JNF (Portugal)

• access control set without handles
• convenient solution for offices and public buildings, as well as apartment entrance doors

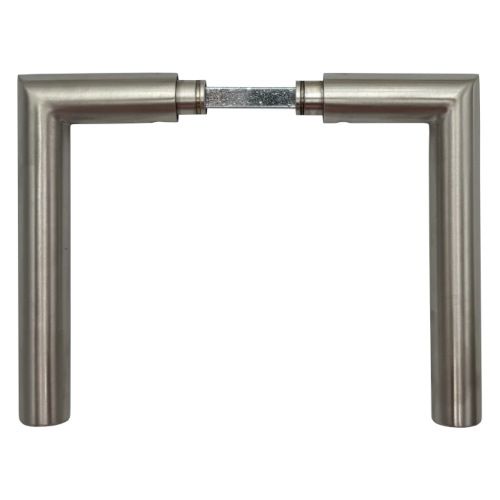

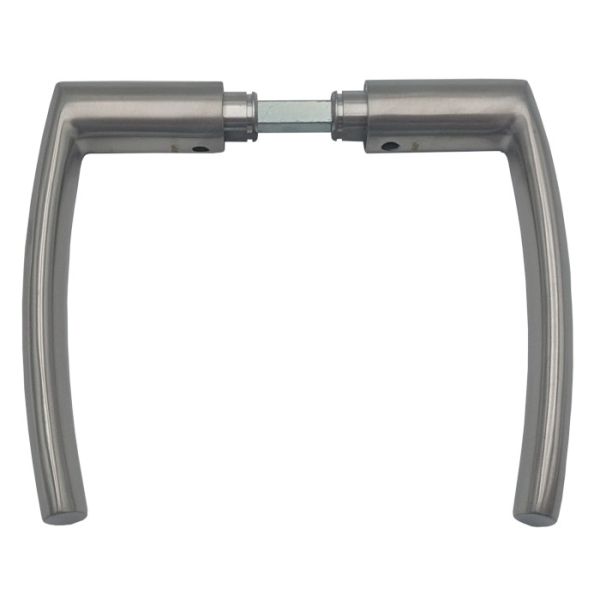

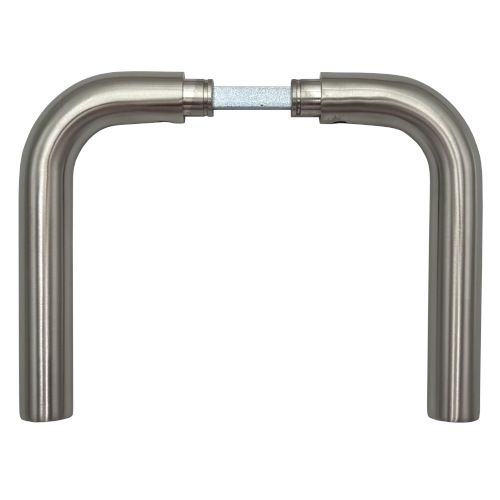

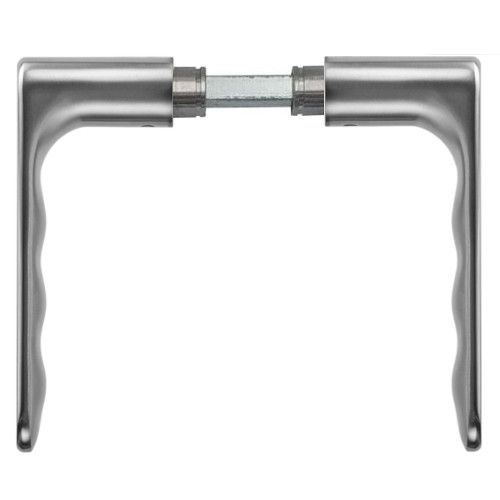

• possible to choose different handle models from the JNF range
• compatible with DIN locks and European profile cylinders
• battery-operated
• controlled with Mifare cards or via mobile app VOYAGER by JNF - free download from Play Store and Apple Store
• wireless connection to a smart device via Bluetooth

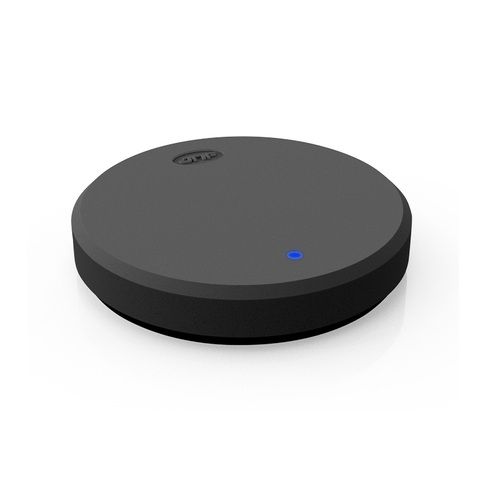

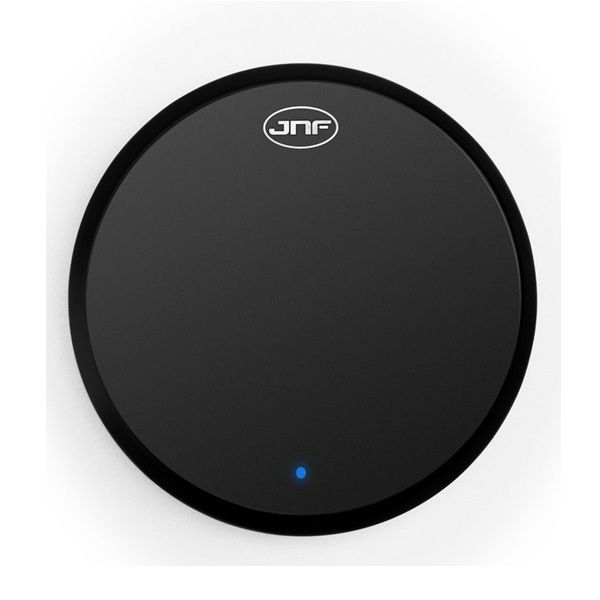

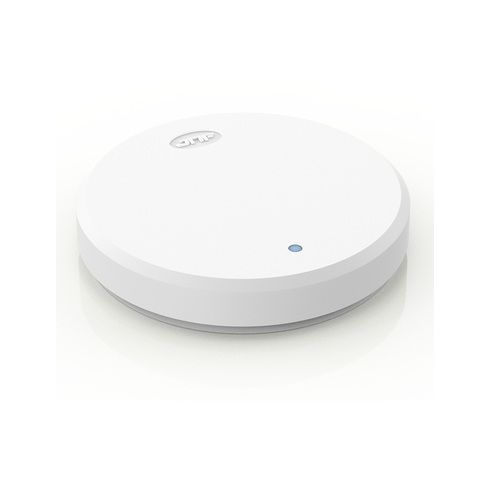

• can be integrated into a WiFi network using a gateway
• possible to combine with code panel

Technical data

• Bluetooth 4.0 technology

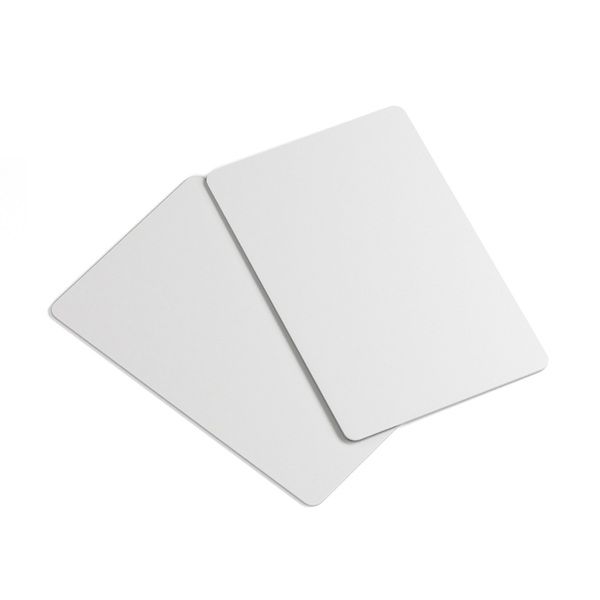

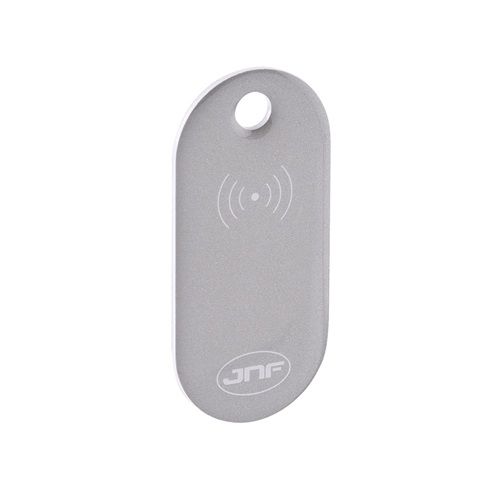

• Mifare 13.56MHZ magnetic cards - max 1000 pc.
• status indication with LED
• sounds for installation assistance
• USB-C input for external power (in case of battery failure)
• possible to choose different handle models from the JNF range
• outer handle is idle, activated only after authentication
• possible to activate free access mode
• possible to retrofit doors with existing locks
• compatible with DIN locks and European profile cylinders

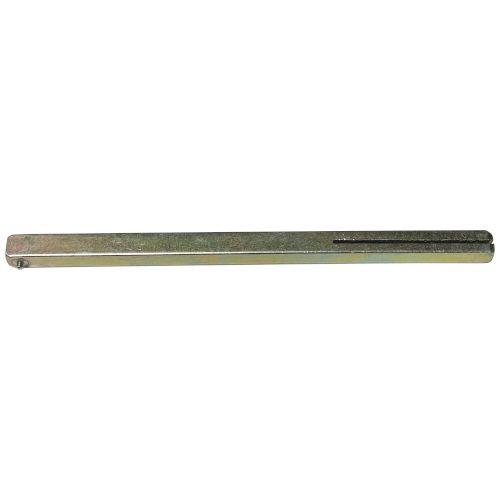

• spindle: 8x8 mm
• possible to open with a standard key in case of emergency (recommended)
• handle rotation: 45º
• suitable for door thickness of 35 - 60 mm (when equipped with an extended handle axis - up to 100 mm)
• distance between handle and cylinder: 70 - 102 mm
• backplate dimensions: 48 x 286 mm
• backplate thickness: 21 mm
• 3 alkaline batteries LR03 – 1.5V AAA (optional 3 lithium batteries FR03 – AAA 1.5V)
• static consumption: 12 µA
• dynamic consumption: 300 mA
• durability: 40 000 - 70 000 cycles with 1 set of batteries (variable according to weather conditions)
• low battery warning: 200 cycles after the first warning
• temperature range: -20 ºC to +55 ºC (lower air temperatures reduce battery life)
• operational humidity range: 20-80%
• material: stainless steel EN 1.4301 satin / black

ATTENTION

To ensure the reliable and long-term performance of the access control system and any electronics integrated into the door handles, appropriate protection against adverse environmental conditions is essential. Exposure to rain, snow, direct sunlight, and extreme temperatures may negatively impact electronic components and lead to operational failures. It is recommended that doors be installed in a recessed position or equipped with a protective canopy to minimize exposure to precipitation, intense solar radiation, and other atmospheric influences. Inadequate protection against environmental factors may result in system damage and will void the warranty. During exterior and interior finishing or construction works, the door handle and its electronic components must be carefully protected against dust, dirt, and ingress of construction materials onto surfaces or into the mechanism.

VOYAGER by JNF app

https://voyagerbyjnf.com/en

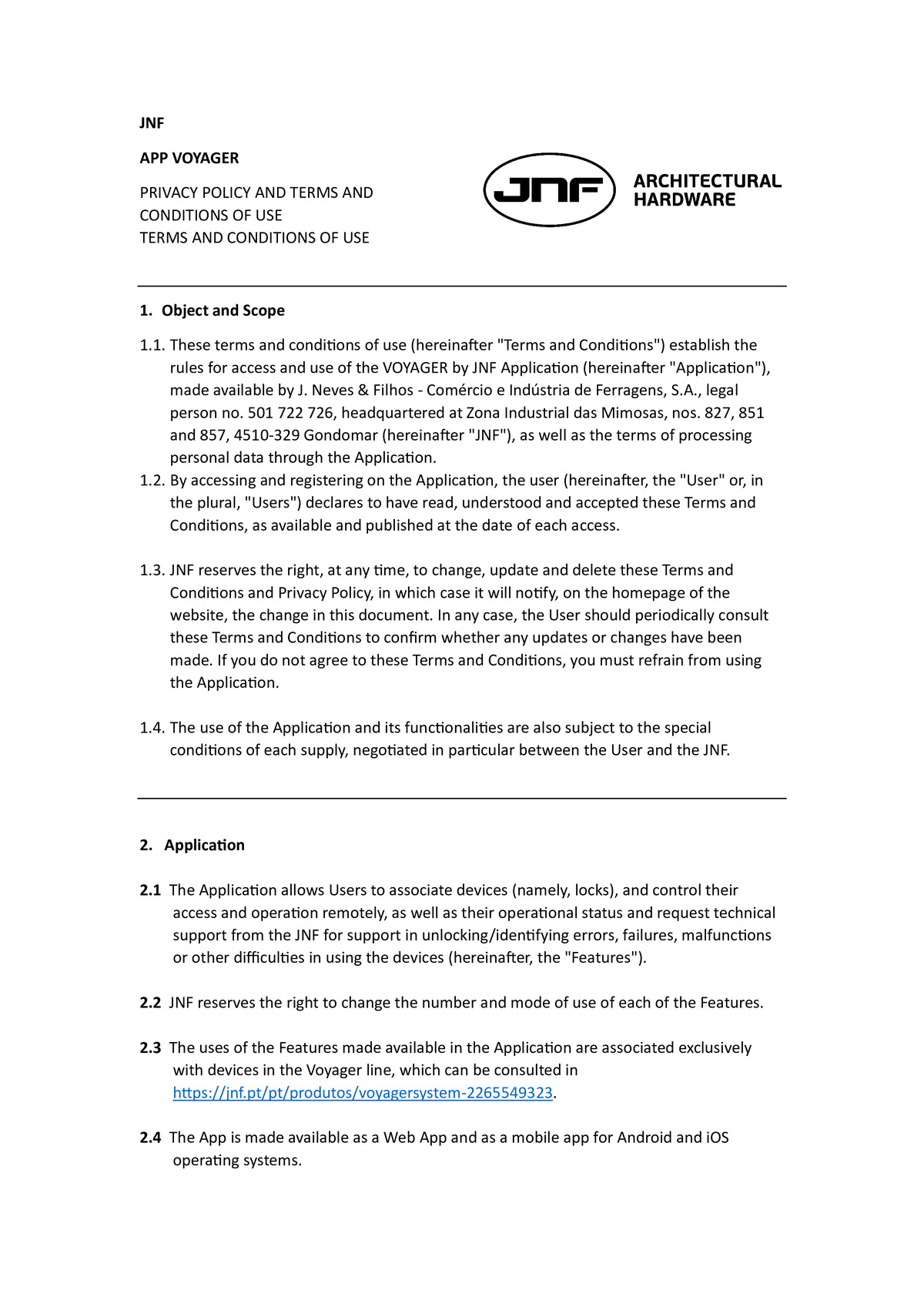

JNF Voyager app - Terms of use (EN)
