Concealed hinge INVISACTA IN300 M

Product code
IN300-M
OTLAV View catalogue of manufacturer

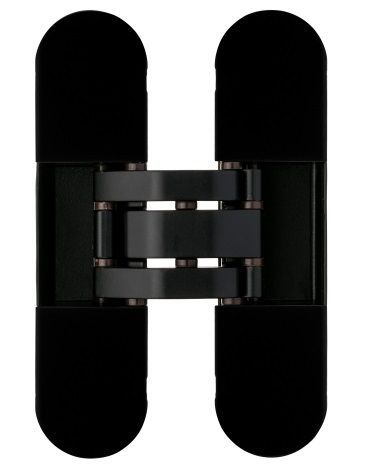

main product photo


From €19.26 was €21.39

Please add to cart hinge cover plates in the required number.
One hinge requires 4 covers.

Reset selection
INVISACTA IN300 concealed hinge 30x120 mm, black   €19.26
Code: SB00018786
Art. Nr.: IN3001209N02
Out of stock. Estimated delivery time: 6 weeks.

Price as configured €19.26

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

Concealed hinge INVISACTA IN300
Manufacturer - OTLAV (Italy)

  • ideal solution for modern doors
  • may be leaf or frame-mounted
  • suitable for non-rebated wooden doors
  • 3-dimensional adjustability: side (+/- 1 mm), depth (+/- 1 mm) and height (+/- 2 mm)
  • suitable for both left and right hand doors)
  • maximum load capacity: 60 kg (2 hinges per leaf)
  • size: 120 x 30 mm
  • Ø 12 mm
  • depth of the milling in the frame: 21 mm
  • high level of durability, ensured by the 7 joint hinges and durable nylon receiver
  • opening angle: 180°
  • compatible with aluminium caps (4 pc. needed for 1 hinge)
  • material metal alloy ZAMAK, black



All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. INVISACTA IN300 concealed hinge 30x120 mm, black
    INVISACTA IN300 concealed hinge 30x120 mm, black
    Code: SB00018786
    Art. Nr.: IN3001209N02
    Price:
    From Special Price €19.26 was €21.39
    In Stock: 0 pc.
  2. INVISACTA 3D concealed hinge cover, black (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, black (4 pcs. required per hinge)
    Code: SB00018742
    Art. Nr.: GC3000109N02
    Price:
    From Special Price €0.41 was €0.46
    In Stock: 0 pc.
    Can be ordered in full packages of 4 pcs.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mounting plate for Invisacta IN300120, zinc plated
    Mounting plate for Invisacta IN300120, zinc plated
    Code: SB00018809
    Art. Nr.: NP120040H502
    Price:
    From €2.99
    In Stock: 0 pc.
    Visma Quote
Manufacturer OTLAV
door direction universal use for DIN right and left hand doors
door construction for non-rebated doors
height 120 mm
load capacity middle
material ZAMAK
leaf material wood
groove for leaf seal no
anti-corrosion resistance certified according to EN 1935 - depending on finish
maintenance not required (self-lubricating bearings)
suitable for timber frames suitable
suitable for industrial frames suitable using additional mounting parts
suitable for steel frames suitable using additional mounting parts
suitable for aluminium frames suitable using additional mounting parts
hinge shape rounded
anti-intruder protection yes, protected hinge design
class as per EN 1935 class 2
installation template available for sale or rent
fastening elements must be ordered separately
adjustment adjustable
fire safety suitable for fire and smoke safety doors
hinge type concealed hinge
leaf maximum weight 60 kg
cutter diameter 24 mm
