HAWA JUNIOR 120 B POCKET seinale paigaldatav liuguksesüsteem minimaalse paigalduskõrgusega

HAWA JUNIOR 120 B POCKET sliding door system with minimal installation height

Manufacturer - HAWA (Switzerland)

• fitting for top-running wooden doors up to 120 kg
• wall pocket solution with minimal installation height
• optionally with soft and self closing mechanism
• ideal solution for rooms requiring optimised use of space
• complies with requirements for environmental accessibility in retirement homes, convalescent homes, shopping centres, schools, public establishments, private homes, apartment buildings, villas and hotels
• wall or ceiling mounting / ceiling mounting recessed
• system can be dismantled, replaced and added to at any time
• carrier profile with bayonet-type fitting enables track installation and dismantling even in stationary partitions
• system is delivered pre-assembled, thus protecting it from exposure to construction dust
• features suspension created specifically for installation into partitions; a clip-on panel for concealed installation, and new, stable and shortened bottom guide rail
• suspension with carrier profile and integrated guide rail
• simple suspension of the door leaf into the construction
• door end position setup via suspension guide
• stable track without play
• side-adjusted bottom guide rail without play
• separator between track and carrier profile reduces vibration
• tracks of max. 3 m can be dismantled even from stationary partitions
• track parts can be changed and added to at any time
• pull-out handle for the door can be integrated into track
• cover panel for concealed connection with lintel panels of up to 40 mm in thickness
• max. weight of sliding door leaf: 120 kg
• max. door width: 1500 mm
• max. leaf height: 4000 mm
• max. opening widht: 1470 mm
• door thickness: 35-80 mm
• height adjustment ±3 mm, with built-in protection against torsion
• pre-drilled track, standard length: 6000 mm (available for cut to size)
• track material: aluminium anodised
• additional accessory: track-fitted soft closing mechanism HAWA SoftMove pulls the door gently to the end position:
  • single SoftMove for door leaf from 690 mm
  • double SoftMove (2 pc.) for door leaf from 1030 mm

TECHNICAL DOCUMENTATION

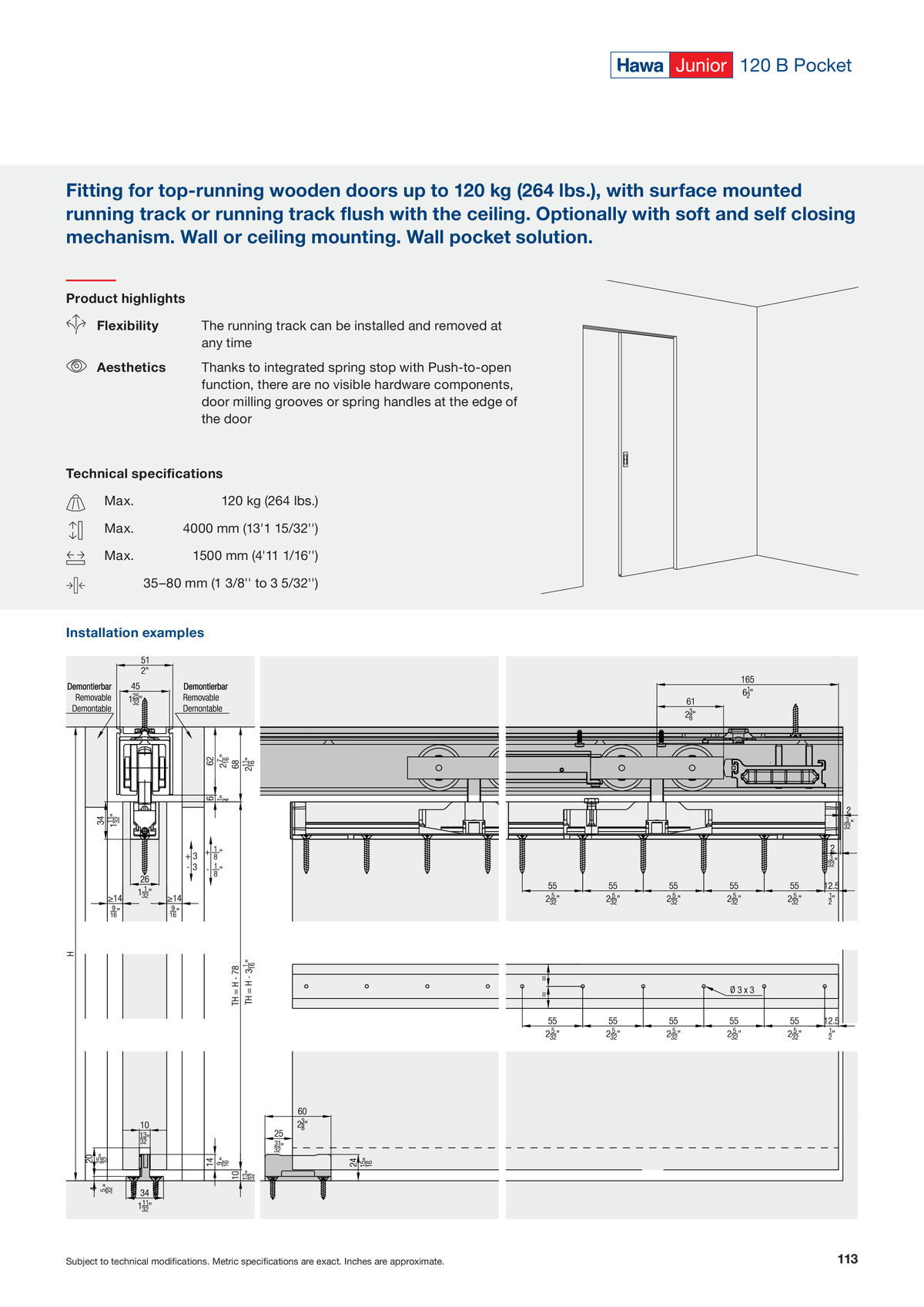

Hawa Junior 120 B Pocket - catalogue

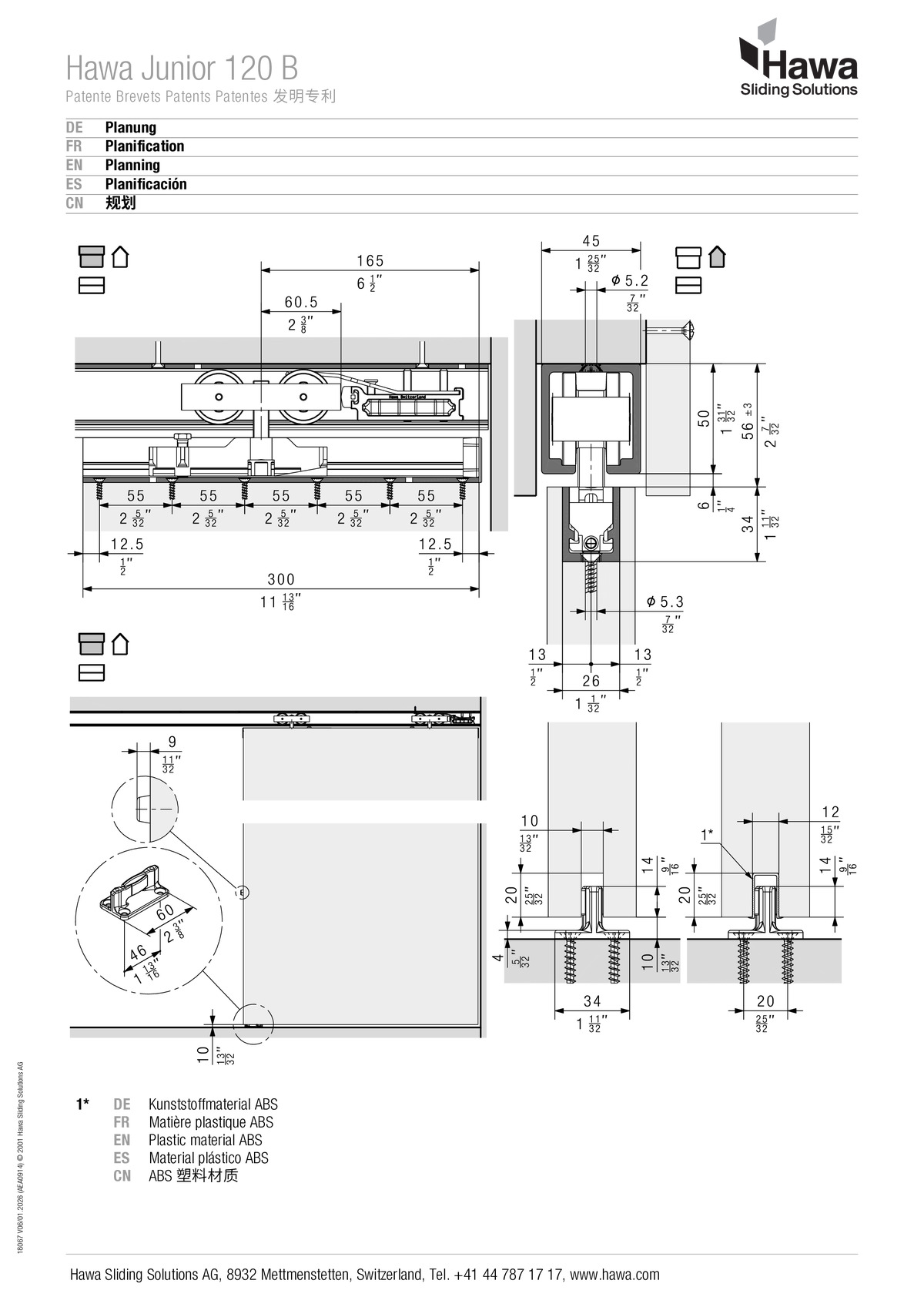

Hawa Junior 120 B - mounting instructions

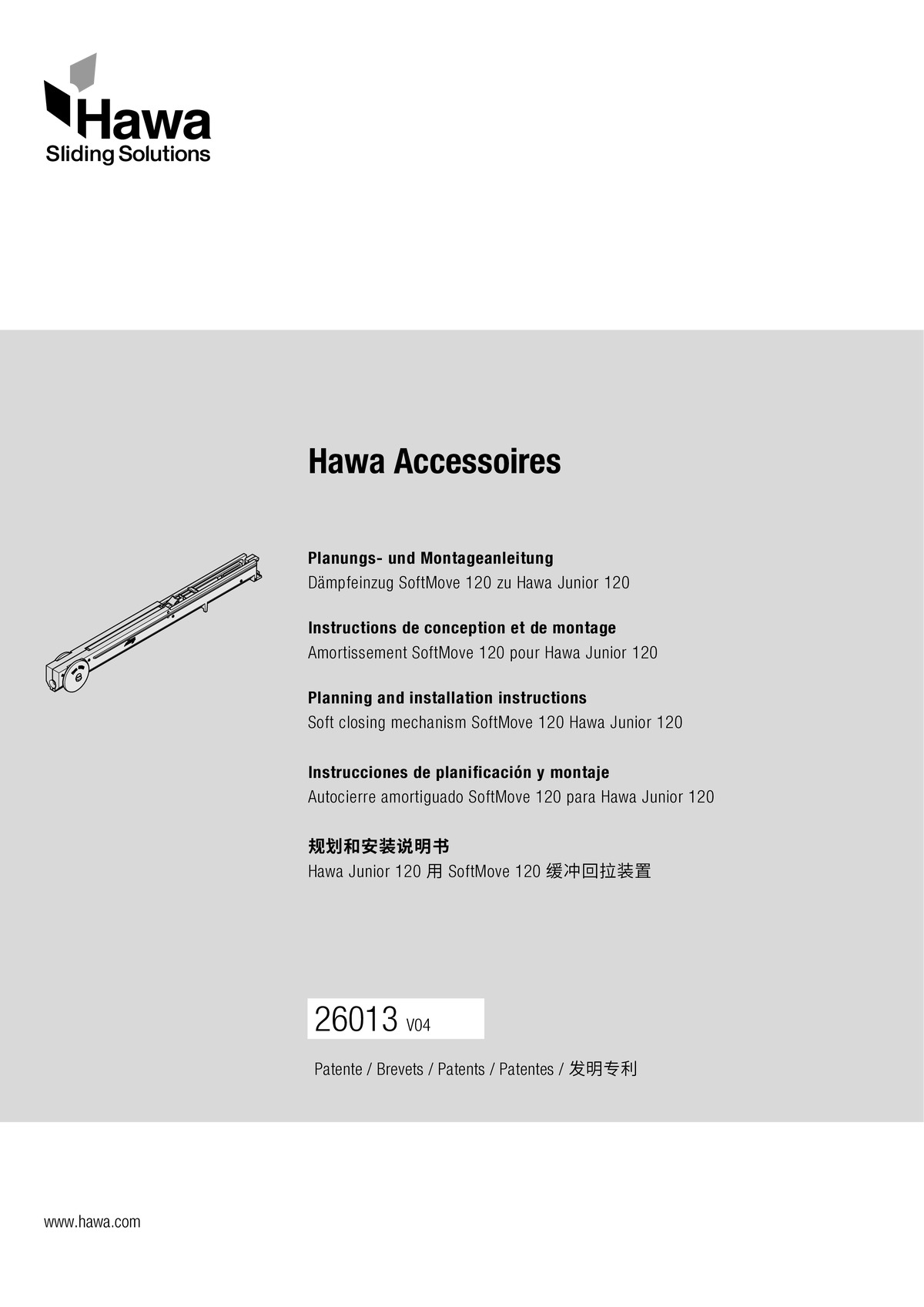

Hawa SoftMove 120

Hawa Junior 40/80/100/120 Set for assembling/disassembling top tracks in wall pockets
